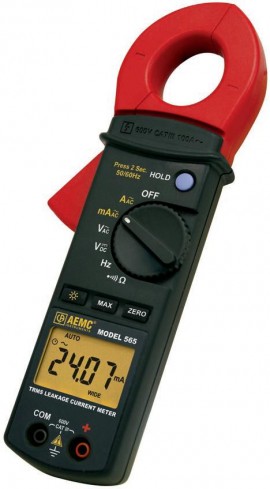

AEMC 565 True RMS Clamp-on Leakage Current Meter, 60mA-100A, 600V AC/DC

Model: 565 | Order No: 2117.56 | UPC: 685338110166

AEMC 565 True RMS Clamp-on Leakage Current Meter, 60mA-100A, 600V AC/DC

Model: 565 | Order No: 2117.56 | UPC: 685338110166

Check for leakage and locate insulation breakdowns on live circuits. Measures leakage current up to 600mA with up to 10µA resolution.

Check for leakage and locate insulation breakdowns on live circuits. Measures leakage current up to 600mA with up to 10µA resolution.

Sale Price $270.75 USD
Regular Price $285.00 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your 565

Add In-House Traceable Calibration to your 565


AEMC 565 Offers

Designed to measure low AC currents, which are typically leakage currents in ground conductors.

The TRMS Clamp-On Leakage Current Meter Model 565 is designed to measure low AC currents, which are typically leakage currents in ground conductors. Low currents are measured using either 60mA or the 600mA range. The high sensitivity of the probe (10µA and 100µA) is possible through special jaw construction and, in particular, critical shielding of the jaws. At low measurement levels, this shielding out of the noise is critical for low sensitivity, accuracy and stability.

The Model 565 may be used as a standard clamp-on meter measuring to 100Arms, as well as AC Volts and DC Volts, resistance and continuity (with a buzzer).

The Model 565 is ergonomic in design and fits well in the hand, facilitating one hand operation. The jaw size is compact yet designed to accommodate the most common conductors up to 1" (26mm) in diameter.

Features

  • Check for leakage and locate insulation breakdowns on live circuits.
  • Measures leakage current up to 600mA with up to 10μA resolution.
  • Measures current up to 100Arms
  • Measures up to 600Vac/dc
  • Measures Hz on either V or A inputs
  • Measures Resistance and Continuity
  • Hold feature freezes Value
  • Max feature keeps track of highest measured In-rush value
  • Zero button ideal for measuring relative values
  • Filter to isolate 50/60Hz fundamental from harmonics
  • Compatible with VDE 0404

Applications

  • Ground fault current measurement
  • Electrical safety compliance testing
  • Medical device safety testing
  • Process loop monitoring
  • General AC load monitoring
  • Industrial troubleshooting checks

AEMC 565 Specifications

mA AC Current (TRMS, Auto-Ranging)
Measurement Range 0 to 600mA
Resolution 60mA: 0.01mA (10μA)
600mA: 0.1mA (100μA)
Accuracy 50 to 60Hz: 1.2% of Reading ± 5cts
50 to 500Hz: 2.5% of Reading ± 5cts
500Hz to 3kHz: 3.5% of Reading ± 10cts
AC Current (TRMS, Auto-Ranging)
Measurement Range 10 to 100A
Resolution 10A: 0.001A (1mA)
100A: 0.01A (10mA)
Accuracy 50 to 60Hz: 1.2% of Reading ± 5cts
50 to 500Hz: 2.5% of Reading ± 5cts
500Hz to 3kHz: 3.5% of Reading ± 10cts
AC Voltage (TRMS)
Measurement Range 0 to 600V
Resolution 0.1V
Accuracy 50 to 60Hz: 1.0% of Reading ± 5cts
50 to 500Hz: 1.2% of Reading ± 5cts
500Hz to 3kHz: 2.5% of Reading ± 10cts
DC Voltage
Measurement Range 0 to 600V
Resolution 0.1V
Accuracy 1.0% of Reading ± 3cts
Frequency (Auto-Ranging)
Function A-Hz and V-Hz
Sensitivity A-Hz: 10mArms min
V-Hz: 5Vrms min
Accuracy 0.5% of Reading ± 2cts
Resistance
Measurement Range 0 to 1kΩ
Resolution 0.1Ω
Accuracy 1.0% of Reading ± 3cts
Continuity
Measurement Range 0 to 1kΩ
Resolution 0.1Ω
Buzzer <35Ω ±25Ω
General Specifications
Dimensions 8.5 x 2.5 x 1.18" (218 x 64 x 30mm)
Jaw Opening 1.10" (28mm)
Maximum Conductor Size 1" (26mm)
Weight 10 oz (280g) with batteries
Click here for complete specifications on the AEMC 565

What's included with the AEMC 565

  • True RMS Clamp-on Leakage Current Meter
  • Two color-coded 5ft test leads
  • Carrying Case
  • 2 AAA Batteries
  • User Manual

Click on a category to view a selection of compatible accessories with the AEMC 565 True RMS Clamp-on Leakage Current Meter, 60mA-100A, 600V AC/DC.

AEMC 2154.74 Leads with Safety Needle Tips, Colour Coded, Set of 2, 5ft 2154.74
Color-coded 5ft lead with safety needle tips (2mm), 1000V CAT IV, 15A. For use with the AEMC 501, 503, 511-514, 565, 5231, 5233, CM605, 670, 675 & F07.
