SEE THE UNSEEN™ - Affordable, High-Resolution Thermal Imaging
SEE THE UNSEEN™
The Reveal 300 simplifies scanning large areas, locating people and animals, inspecting engines, detecting leaks, and navigating in total darkness.
The Reveal 300 simplifies scanning large areas, locating people and animals, inspecting engines, detecting leaks, and navigating in total darkness.

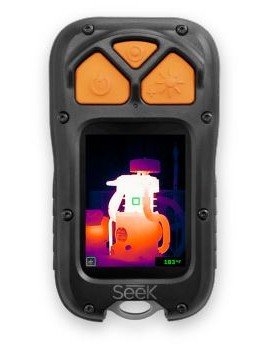

Meet the Reveal 300, a powerful handheld thermal camera designed for industrial inspections, search and rescue, nighttime navigation, and enhanced safety. Featuring a high-resolution thermal sensor, the Reveal 300 enables effortless scanning of large areas, locating of people and animals, motor inspections, leak detection, and reliable navigation in complete darkness.
Equipped with a 320x240 thermal sensor and a 300-lumen LED flashlight, this compact, lightweight device (5.1” x 3” x 1.8”, 325 grams) provides outstanding performance. Designed for rugged environments with an IP67 rating and 2-meter drop resistance, it offers up to 6 hours of battery life, or 3.5 hours with the flashlight active, ensuring dependable support for industrial safety and operational efficiency.
Features
| Thermal Sensor | 320 x 240 |
| Field of View | 18° HFOV x 24° VFOV |
| Protective Sensor Window | Yes |
| Video Recording | Yes |
| Image Capture | Yes |
| Temperature Range | -4°F to 1,022°F (-20°C to 550°C) |
| Operating Temp | -4°F to 140°F (-20°C to 60°C) |
| Frame Rate | > 25 Hz FastFrame |
| IP Rating | IP67 rating for harsh environments |
| Impact Resistance | 2 meter drop onto concrete |
| Flashlight | 300 Lumen LED |
| Display | 2.8” TFT 320 x 240 screen resolution |
| Thermal Sensitivity | < 35 mK with SV1 |
| Viewing Angle | Ergonomic 90° viewing angle |
| Imaging Modes | Basic, Center Spot, SURVEY |
| Size: H x W x D | 5.1 x 3 x 1.8 inches (130 x 76 x 46 mm) |
| Weight | 0.7 lbs (325 grams) |
| Battery Life | 6 hours in thermal only 3.5 hours with flashlight on |
| Thermal Sensor | 320 x 240 |
| Field of View | 18° HFOV x 24° VFOV |
| Protective Sensor Window | Yes |
| Video Recording | Yes |
| Image Capture | Yes |
| Temperature Range | -4°F to 1,022°F (-20°C to 550°C) |
| Operating Temp | -4°F to 140°F (-20°C to 60°C) |
| Frame Rate | > 25 Hz FastFrame |
| IP Rating | IP67 rating for harsh environments |
| Impact Resistance | 2 meter drop onto concrete |
| Flashlight | 300 Lumen LED |
| Display | 2.8” TFT 320 x 240 screen resolution |
| Thermal Sensitivity | < 35 mK with SV1 |
| Viewing Angle | Ergonomic 90° viewing angle |
| Imaging Modes | Basic, Center Spot, SURVEY |
| Size: H x W x D | 5.1 x 3 x 1.8 inches (130 x 76 x 46 mm) |
| Weight | 0.7 lbs (325 grams) |
| Battery Life | 6 hours in thermal only 3.5 hours with flashlight on |
