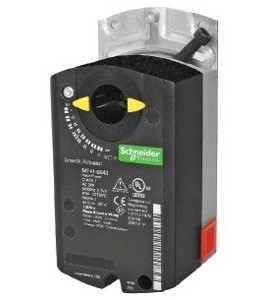

A 24 VAC direct-coupled, non-spring-return rotary actuator engineered for floating control of HVAC dampers. It delivers approximately 88 lb-in (5 N-m) of torque, features manual override, and is suitable for damper shafts under 3/4" (1.91 cm).
A 24 VAC direct-coupled, non-spring-return rotary actuator engineered for floating control of HVAC dampers. It delivers approximately 88 lb-in (5 N-m) of torque, features manual override, and is suitable for damper shafts under 3/4" (1.91 cm).
Features
| Control signal | Floating three-position control, 24 VAC |
| Power inputs | Control: Floating Voltage: 24 VAC VA at 60Hz: 2.3 |
| Connections | 3' (0.9 m) appliance cable, 18 AWG plenum-related leads |
| Mechanical outputs | Travel: Normal angle of rotation is 90°, limited to a maximum of 95° Field adjustable to limit travel on either end of stroke |
| Ambient temperature limits | Shipping and storage: -40 to 158°F (-40 to 70°C) Operating: -13 to 130°F (-25 to 55°C) NOTE: Check the valve operating temperature limit. The minimum valve temperature limit is 45°F (7°C) Humidity: 5–95 % RH, non-condensing |
| Location | NEMA Type 2 (IEC IP54) |
| Agency listings | c-UL-us LISTED per UL 873 and CAN C22.2 No.24-93 CE compliant to directive LVD, EMC, RoHS2 |
Click on a category to view a selection of compatible accessories with the Schneider Electric MF41-6083 Direct Coupled Floating Damper Actuator, 88 lb-in, 24 VAC.
| Control signal | Floating three-position control, 24 VAC |
| Power inputs | Control: Floating Voltage: 24 VAC VA at 60Hz: 2.3 |
| Connections | 3' (0.9 m) appliance cable, 18 AWG plenum-related leads |
| Mechanical outputs | Travel: Normal angle of rotation is 90°, limited to a maximum of 95° Field adjustable to limit travel on either end of stroke |
| Ambient temperature limits | Shipping and storage: -40 to 158°F (-40 to 70°C) Operating: -13 to 130°F (-25 to 55°C) NOTE: Check the valve operating temperature limit. The minimum valve temperature limit is 45°F (7°C) Humidity: 5–95 % RH, non-condensing |
| Location | NEMA Type 2 (IEC IP54) |
| Agency listings | c-UL-us LISTED per UL 873 and CAN C22.2 No.24-93 CE compliant to directive LVD, EMC, RoHS2 |
Click on a category to view a selection of compatible accessories with the Schneider Electric MF41-6083 Direct Coupled Floating Damper Actuator, 88 lb-in, 24 VAC.
