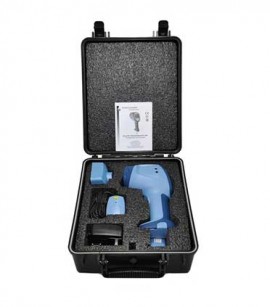

This kit includes everything you need to begin your stroboscopic visual inspections and noncontact tachometric measurements. It operates at a range of 30 to 999,999 fpm/rpm.
This kit includes everything you need to begin your stroboscopic visual inspections and noncontact tachometric measurements. It operates at a range of 30 to 999,999 fpm/rpm.
The Monarch 6249-011 Nova-Pro Ultraviolet 385 LED Stroboscope/Tachometer makes it easy to perform 2 functions with 1 tool. With a rate of up to 999,999 fpm/rpm, you can calculate measurements with extreme precision. Plus, this kit comes with an NIST calibration certificate, giving you confidence in the measurement accuracy of this strobe. Splash-proof case included.
Features
| Flash Range | 30 to 999,999 fpm/rpm |
| Display | 6-digit numeric and 5-digit alphanumeric backlit LCD with touch keypad |
| Accuracy | 0.001% of setting or ±1 Lsd/6 digits to 0.001 |
| Light Output | 12" (300 mm): 1,700μW/CM2 at 1% duty cycle |
| Flash Duration | 0.001 to 2 ms (0.1 to 14°) |
| Light Source | 12 high-output LEDs |
| Color Temperature | ~6,200°K |
| External Triggers In/Out | TTL (12 VDC max) input; 3.3 VDC TTL output |
| Programmable Memory | 10 set points |
| Internal Phase Shift | Yes |
| Phase Delay | -360 to 345° |
| Time Delay | -50 to 50 ms |
| Power Supply | Removable/rechargeable lithium-ion battery pack with 115/230 50/60 Hz recharging station and interchangeable plugs |
| Battery Life | 9.5 hours (standard battery pack); 19 hours (hi-capacity battery pack); continuous AC power adapter (optional) |
| Product Length | 9.5" (241 mm) |
| Product Width | 3.75" (95 mm) |
| Product Height | 5.5" (140 mm) |
| Product Weight | 1.4 lbs (635 g) standard battery; 1.5 lbs (680 g) hi-capacity battery |
