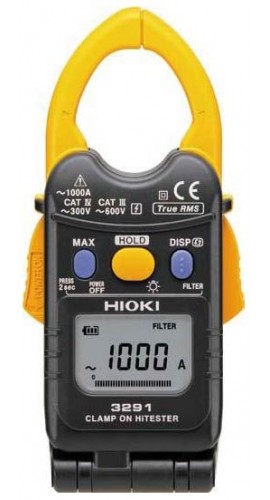

Hioki 3291-50 AC Clamp On HiTESTER, 45Hz to 400Hz

Model: 3291-50 | Order No: 3291-50-25

Be the first to review this product

Hioki 3291-50 AC Clamp On HiTESTER, 45Hz to 400Hz-

Downloads: datasheet

More Hioki Products

Ask an Expert

Hioki 3291-50 AC Clamp On HiTESTER, 45Hz to 400Hz

Model: 3291-50 | Order No: 3291-50-25

Be the first to review this product

Hioki clamp meters provide best in class measuring devices. Thin and compact clamp core, that can measure load current between 60 to 1000A range. The display panel is easily adjustable to fit the measuring location, and with the back light it makes it easy to use in the dark locations.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Hioki CM3289 True-RMS AC Clamp Meter, 1000A

Model: CM3289

This clamp meter is essential for professional electricians as it can measure current and voltage in wires easily in the most confined spaces.

Learn More

Hioki 3291-50 Offers

Features

Innovative flip clamp design
Flip display to see measurement readings from any angle
Maximum 1000A
3 ranges, bar graph display

Hioki 3291-50 Specifications

AC current	60.00/ 600.0/ 1000 A, 3 ranges, 45 Hz to 400 Hz, True RMS
Basic accuracy	±1.5 % rdg. ±5 dgt. (50/60 Hz, filter ON)
Crest factor	2.8 or less (1.68 or less at 1000 A range)
Filter function	Cut off frequency 180 Hz at filter ON (-3 dB)
Other functions	Flip-open mechanism (but still retaining proper orientation of display, Back light, Maximum value display, Data hold, Auto power off
Display	Digital LCD, max. 6000 dgt., 91 segments
Display refresh rate	1.1 sec or less
Power supply	Coin type lithium battery (CR2032) ×1, Continuous use 20 hours
Core jaw diagram	φ 30 mm (1.18 in)
Dimensions and mass	50 mm (1.97 in) W × 136 mm (5.35 in) H × 26 mm (1.02 in) D, 115 g (4.1 oz)

Click here for complete specifications on the Hioki 3291-50

What's included with the Hioki 3291-50

Coin type lithium battery (CR2032, for trial purposes only) ×1Hiolki 3291-50 AC
Carrying Case 9757
Strap, Instruction manual

datasheet for the Hioki 3291-50 AC Clamp On HiTESTER, 45Hz to 400Hz
