This clamp meter is essential for professional electricians as it can measure current and voltage in wires easily in the most confined spaces.
This clamp meter is essential for professional electricians as it can measure current and voltage in wires easily in the most confined spaces.

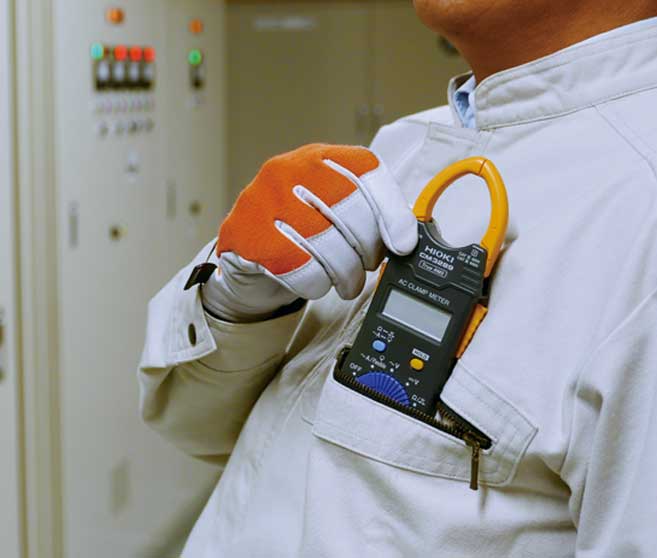

The CM3289 is a True RMS rectifying 1000A AC clamp meter that features a broad operating temperature range of -13 to 149°F (-25 to 65°C), thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
Features
Applications
| Ranges | AC Current: 42.00 to 1000 A AC, 3 Ranges (±1.5% rdg. ±5 dgt. at 40 Hz to 1 kHz, True RMS), Effective Value Rectifier AC Voltage: 4.200 to 600 V AC, 4 Ranges (±2.3% rdg. ±8 dgt. at 45 to 500 Hz, True RMS), Effective Value Rectifier DC Voltage: 420.0 mV to 600 V DC, 5 Ranges (±1% rdg. ±3 dgt.) |
| Resistance | 420.0 to 42.00 MΩ 6 Ranges |
| Accuracy | ±2.0% rdg. ±4 dgt. @ 420 to 420 kΩ Range |
| Continuity | 420.0 Ω (Buzzer sounds at approx. 50 Ω or less) |
| Frequency Characteristics | AC Current: 40 to 1 kHz AC Voltage: 45 to 600 Hz |
| Display Section | Digital/LCD, Maximum 4199 dgt. Display refresh rate: 400 ms |
| Crest Factor | 2.5 or less at 2500 counts (Linearly decreases to 1.5 or less at 4200 count) |
| Maximum Circuit Voltage | Insulated Wire: 600 V AC RMS |
| Power Supply | Coin Type Lithium Battery |
| Core Jaw Diameter | Ø1.30" (33 mm) |
| Input | Flex Probe |
| Dimensions | 2.24 x 7.13 x 0.63" (57 x 181 x 16 mm) |
| Weight | 3.5 oz (100 g) |
