This clamp-on tester can measure AC currents up to 1,000 A, as well as voltage, frequency, resistance and wave peak value. The tester is equipped with true RMS capability.
This clamp-on tester can measure AC currents up to 1,000 A, as well as voltage, frequency, resistance and wave peak value. The tester is equipped with true RMS capability.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

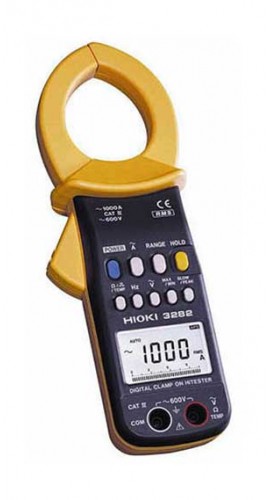

Great for measuring AC current, voltage, frequency, resistance and wave peak value, the Hioki 3282 True RMS Digital Clamp-On HiTester is an ideal multifunctional device. The clamp-on design helps provide safe testing of current up to 1,000 A.
Features
| AC Current | 30 to 1,000 A in 3 ranges (40 Hz to 1 kHz) with ±1% of reading, ±5 digits accuracy |
| AC Voltage | 300/600 V (40 Hz to 1 kHz) with ±1% of reading, ±3 digits accuracy |
| Crest Factor | 2.5 or less (1.7 at 1,000 A and 600 V) |
| Frequency | 30 to 1,000 Hz with ±0.3% of reading, ±1 digit accuracy |
| Resistance | 1,000 Ω/10k Ω with ±1.5% of reading, ±5 digits accuracy |
| Continuity Check | Beep sounds at 30 Ω or less |
| Display | 3,000-digit LCD with refresh rates of 4 times/second (fast), 1 time/3 seconds (slow), 4 times/second (bar graph) |
| Power Supply | 6F22 stacked manganese battery |
| Core Jaw Diameter | φ1.81" (46 mm) |
| Other Functions | Current wave peak value, voltage wave peak value, distortion check (crest factor 1 to 5), maximum/minimum/average value record function, data hold, auto power off |
| Product Length | 1.54" (39 mm) |
| Product Width | 2.44" (62 mm) |
| Product Height | 9.06" (230 mm) |
| Product Weight | 14.1 oz (400 g) |
| AC Current | 30 to 1,000 A in 3 ranges (40 Hz to 1 kHz) with ±1% of reading, ±5 digits accuracy |
| AC Voltage | 300/600 V (40 Hz to 1 kHz) with ±1% of reading, ±3 digits accuracy |
| Crest Factor | 2.5 or less (1.7 at 1,000 A and 600 V) |
| Frequency | 30 to 1,000 Hz with ±0.3% of reading, ±1 digit accuracy |
| Resistance | 1,000 Ω/10k Ω with ±1.5% of reading, ±5 digits accuracy |
| Continuity Check | Beep sounds at 30 Ω or less |
| Display | 3,000-digit LCD with refresh rates of 4 times/second (fast), 1 time/3 seconds (slow), 4 times/second (bar graph) |
| Power Supply | 6F22 stacked manganese battery |
| Core Jaw Diameter | φ1.81" (46 mm) |
| Other Functions | Current wave peak value, voltage wave peak value, distortion check (crest factor 1 to 5), maximum/minimum/average value record function, data hold, auto power off |
| Product Length | 1.54" (39 mm) |
| Product Width | 2.44" (62 mm) |
| Product Height | 9.06" (230 mm) |
| Product Weight | 14.1 oz (400 g) |
