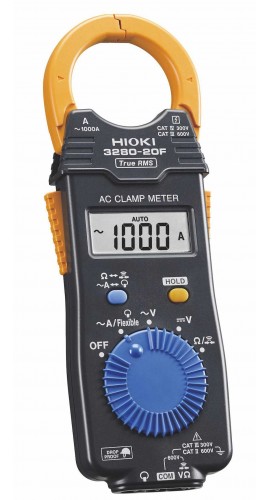

Hioki 3280-20F True RMS AC Clamp Meter, 1,000A-

Downloads: datasheet manual

More Hioki Products

Ask an Expert

Hioki 3280-20F True RMS AC Clamp Meter, 1,000A

Model: 3280-20F

Be the first to review this product

Great for professional electricians, this AC clamp meter uses the true RMS method to measure waveforms. The meter can withstand currents up to 1,000A.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Hioki CM3289 True-RMS AC Clamp Meter, 1000A

Model: CM3289

This clamp meter is essential for professional electricians as it can measure current and voltage in wires easily in the most confined spaces.

Learn More

Hioki 3280-20F Offers

With this Hioki 3280-20F True RMS AC Clamp Meter in your toolbox, you can safely measure AC current up to 1,000A. The meter uses the true RMS method to measure even harmonic waveform components and operates in a vast temperature range from -13 to 149°F (-25 to 65°C).

Features

Uses true RMS method to measure even harmonic waveform components
Built to handle AC current up to 1,000A and AC/DC voltage up to 600V
Capable of measuring resistance up to 41.99MΩ
IP40 dustproof and waterproof design, along with a drop-proof build from up to 3.28ft (1m), for added durability
Built to work in temperatures from -13 to 149°F (-25 to 65°C) for use in harsh environments
LCD shows results up to 4,199 digits and refreshes every 400ms
Cat II 600V (voltage), Cat III 300V (voltage), Cat III 600V (current) and Cat IV 300V (current) ratings

Hioki 3280-20F Specifications

AC Current	41.99 to 1,000A in 3 ranges (40Hz to 1kHz) with ±1.5% of reading, ±5 digits accuracy
DC Voltage	419.9mV to 600V in 5 ranges with ±1% of reading, ±3 digits accuracy
AC Voltage	4.199 to 600V in 4 ranges (45 to 500Hz) with ±1.8% of reading, ±7 digits accuracy
Crest Factor	2.5 or less (1.5 or less at 4,200 counts)
Resistance	419.9Ω to 41.99MΩ in 6 ranges with ±2% of reading, ±4 digits accuracy
Display	4,199-digit LCD with 400ms refresh rate
IP Rating	IP40 dustproof and waterproof
Power Supply	CR2032 coin-type lithium battery
Core Jaw Diameter	φ1.3in (33mm)
Other Functions	Continuity, data hold, auto power save
CE Compliant	Yes
Product Length	0.63in (16mm)
Product Width	2.24in (57mm)
Product Height	6.89in (175mm)
Product Weight	3.5oz (100g)

Click here for complete specifications on the Hioki 3280-20F

What's included with the Hioki 3280-20F

AC Clamp Meter
L9208 Test Lead
9398 Carrying Case
CR2032 Coin-Type Lithium Battery
Instruction Manual
