Measuring 14 to 572°F (-10 to 300°C), this compact and intuitive thermal imaging multimeter pairs a 320 x 240 IR camera with True RMS readings up to 600 V. Moreover, it uses Infrared Guided Measurement (IGM), offering fast and safe pinpointing of electrical issues, while a remote control, affixed to the test leads, allows measurements in tight spaces. Ideal for electrical and HVAC/R diagnostics.
Measuring 14 to 572°F (-10 to 300°C), this compact and intuitive thermal imaging multimeter pairs a 320 x 240 IR camera with True RMS readings up to 600 V. Moreover, it uses Infrared Guided Measurement (IGM), offering fast and safe pinpointing of electrical issues, while a remote control, affixed to the test leads, allows measurements in tight spaces. Ideal for electrical and HVAC/R diagnostics.

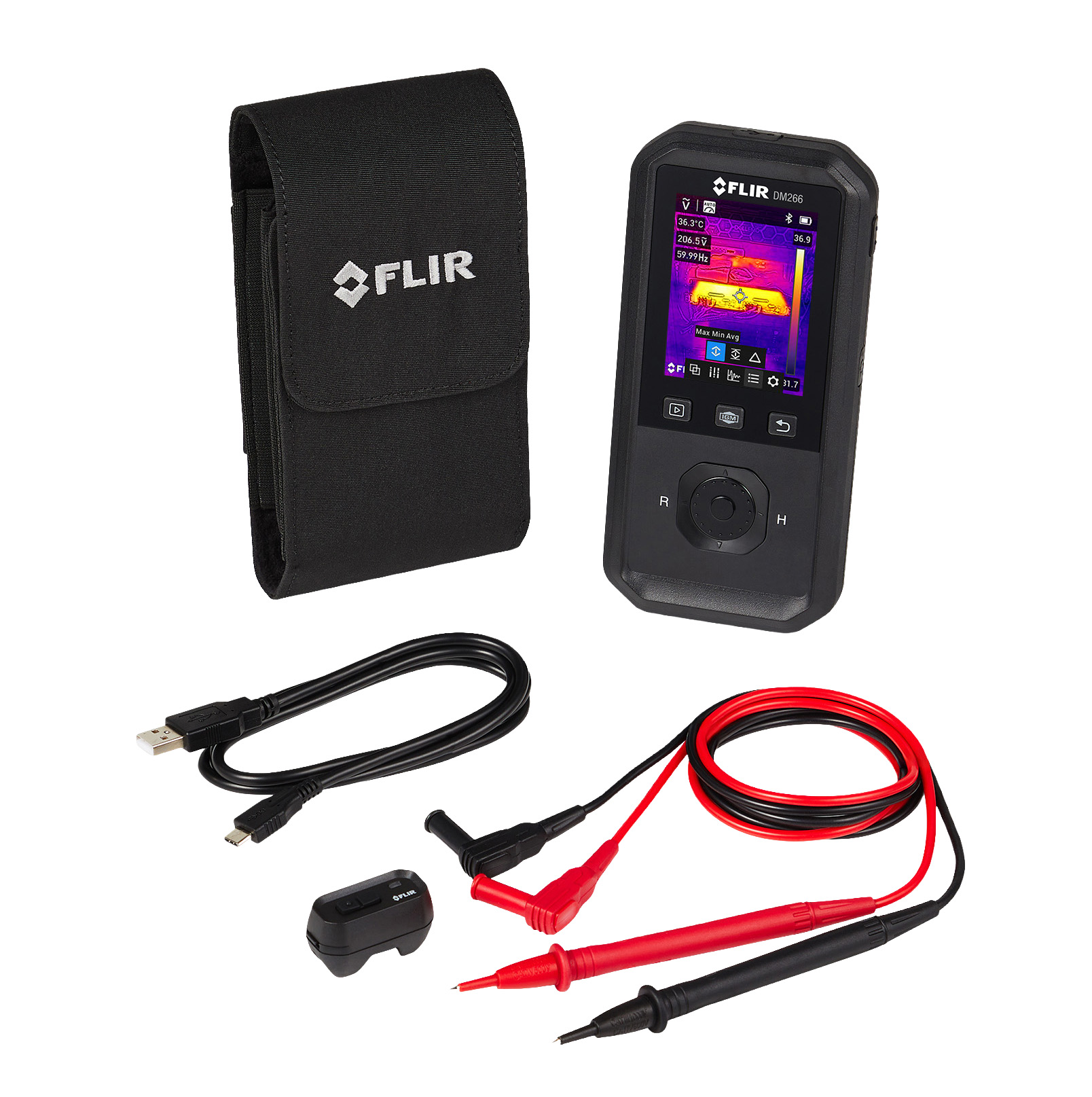

The Flir DM266 features MSX® (Multi-Spectral Dynamic Imaging) enhancement, blending visible details with thermal images for clearer, faster diagnostics. Designed for portability, it supports safe charge-and-use capability for continuous operation. A remote control attached to the test leads lets you capture measurements and inspection scenes simultaneously - ideal for tight spaces and one-handed operation. Built-in tilt stand with a magnetic mount enables hands-free work. Super Resolution boosts thermal images from 160 × 120 to 320 × 240 for superior detail. With the Meterlink® app, you can capture readings, review images and videos, and generate reports directly from your mobile device.
Features
Applications
| Thermal Imaging | |
| Dectector | Flir Lepton® Microbolometer |
| Resolution | Native: 160 x 120 Super: 320 x 240 |
| Field of View (FOV) | 57 x 44° |
| Parameters | Spectral response: 8 to 14 μm Thermal sensitivity: 130 mK Capture frequency: 9 Hz Color palettes: iron, rainbow, arctic, white hot, and black hot |
| IR Temperature | Range: 14 to 572°F (-10 to 300°C) Accuracy: ±5.4°F (±3°C) or ±3% of the reading, whichever is greater Resolution: 0.1°F (0.1°C) |
| Emissivity Adjustment | 0.10 to 1.00 (default is 0.95) - select from three presets or set manually |
| Visual Imaging | |
| Resolution | 2 MP (1600 x 1200 pixels) |
| Focus | Fixed |
| Electrical Measurement | |
| Display | 6000 counts |
| True RMS | Yes |
| AC/DC V | Range: 600 V Accuracy: 600.0 mV, 6.000 V, 60.00 V: ±(0.3% + 2 digits) 600.0 V: ±(0.5% + 5 digits) |
| VFD AC V | Range: 600 V AC Accuracy at 45 to 65 Hz: ±(1.0% + 3 digits) |
| Frequency Counter | Range: 10 kHz Accuracy: ±(0.1% + 2 digits) |
| Resistance | Range: 60 MΩ / 600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.00 kΩ, 6.000 MΩ, ±(1.0% + 2 digits) |
| General Specifications | |
| Datalogging and Storage | Data storage interval (configurable): 1 to 99 seconds Readings per memory set: 40,000 |
| Thermal Image Storage | Storage media: eMMC 8 GB Image file format: radiometric JPEG Maximum number of images: up to 40,000 Video recording: 50 minutes maximum duration (20 seconds maximum for file transmission via Meterlink) |
| Connectivity | Wireless technology: Bluetooth BLE Communications protocol: Meterlink Bluetooth range: 32' (10 m) |
| System Power | Battery: rechargeable 3.7 V, 2950 mAh LiPo Battery life: up to 12 hours in IGM mode, up to 24 hours in multimeter mode (medium brightness) Auto power off: off, 2, 5, or 10 minutes |
| Display | 3.2" (8.13 cm) IPS LCD |
| Certifications | Certifications: ETL, CE, FCC Safety standards: IEC 61010-1 CAT III-600 V EMC standards: EN61326-1, EN61326-2-2, EN300328 Category rating: CAT III-600 V |
| Environmental Conditions | Operating ambient temperature and RH: 14 to 86°F (-10 to 30°C), <85% RH 86 to 104°F (30 to 40°C), <75% RH 104 to 122°F (40 to 50°C), <45% RH Storage temperature and RH: -4 to 140°F (-20 to 60°C), 0 to 80% RH Temperature coefficient: 0.1 x (specified accuracy)/°C, below 64.4°F (18°C), above 82.4°F (28°C) Operating altitude: 6560' (2000 m) Pollution degree: 2 IP rating: IP40 Drop test: 6.6' (2 m) |
| Dimensions | 6.5 x 3.4 x 1.2" (16.8 x 8.7 x 3.1 cm) |
| Weight | 10.54 oz (299 g) |
