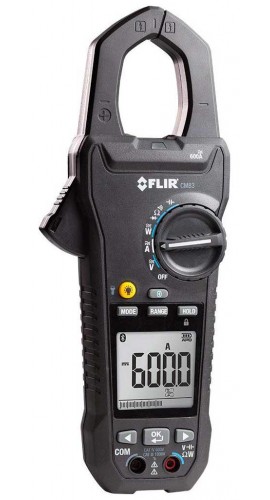

FLIR CM83-NIST TRMS Power Clamp with VFD Mode, METERLiNK and NIST Certificate Calibration, 600 A AC/DC includes Traceable Calibration Certificate

Model: CM83-NIST | UPC: 793950371831

Be the first to review this product

FLIR CM83-NIST TRMS Power Clamp with VFD Mode, METERLiNK and NIST Certificate Calibration, 600 A AC/DC-

Downloads: datasheet manual

More FLIR Products

Ask an Expert

FLIR CM83-NIST TRMS Power Clamp with VFD Mode, METERLiNK and NIST Certificate Calibration, 600 A AC/DC includes Traceable Calibration Certificate

Model: CM83-NIST | UPC: 793950371831

Be the first to review this product

To meet the needs of electrical troubleshooters, this industrial-grade power clamp meter is engineered with advanced power analysis, harmonics measurements and variable frequency drive (VFD) filtering functions. It features Bluetooth® technology to connect compatible mobile devices for remote viewing and sharing and METERLiNK® technology to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

FLIR CM85-2 True RMS Power Clamp with Bluetooth connectivity, 1000 A

Model: CM85-2

Work with premier power and troubleshooting functions with this 1000 A True RMS power clamp that features Bluetooth connectivity up to 32' (10 m) and delivers in demanding applications and any environment. In addition, this power clamp features dual LED work lights to access dimly lit areas for faster and safer inspections.

Learn More

FLIR CM83-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Superior accuracy, reliable performance and view data remotely, share instantly.

Features

VFD Mode provides superior accuracy for working on VFD-controlled equipment
Advanced power efficiency and harmonics measurements for system level performance analysis
True RMS voltage and current plus non-contact voltage detector
2 m drop tested with lifetime warranty
Inrush mode captures fast AC Current spikes during appliance start-up
Phase Rotation testing ensures the motor and power source are aligned
Powerful LED lamps assist with clamping and are bright enough to serve as a primary work light
Remote viewing on smartphones and tablets via Bluetooth plus METERLiNK to wirelessly embed readings into thermal images on compatible FLIR cameras
Large, easy-to-read digits, backlit display and analog bargraph

FLIR CM83-NIST Specifications

Jaw Opening	1.45" (37 mm)
Certifications	CE, UL, FCC
Bluetooth Range Max	32' (10 m)
AC/DC Voltage	Range 999.9 V Max / Basic Accuracy ±1% / 0.7%
Active Power	Range 9.999 to 599.9 kW, (10 V, 5 A min) / Basic Accuracy ±3%
Capacitance	Range 3.999 mF Max / Basic Accuracy ±1.9%
Frequency	Range 20 Hz to 9.999 kHz / Basic Accuracy ±0.5%
AC VFD Voltage	Range 1000 V / Basic Accuracy ±1%
AC/DC Current	Range 599.9 A Max / Basic Accuracy ±2%
Battery Type	6 x AAA

Click here for complete specifications on the FLIR CM83-NIST

What's included with the FLIR CM83-NIST

600A AC/DC True RMS Power Clamp, VFD Mode, METERLiNK Technology
Traceable Calibration Certificate with full Data and Uncertainties
6 x AAA Batteries
CAT IV Silicon Test Leads
Limited Lifetime Warranty
User Manual (CD)

datasheet for the FLIR CM83-NIST TRMS Power Clamp with VFD Mode, METERLiNK and NIST Certificate Calibration, 600 A AC/DC manual for the FLIR CM83-NIST TRMS Power Clamp with VFD Mode, METERLiNK and NIST Certificate Calibration, 600 A AC/DC
