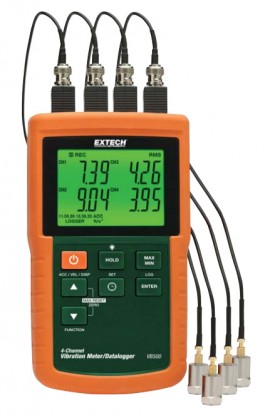

Measures acceleration, velocity and displacement and simultaneously displays four channels. Datalogs and stores readings on an SD card in Excel format with selectable data sampling rates. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Measures acceleration, velocity and displacement and simultaneously displays four channels. Datalogs and stores readings on an SD card in Excel format with selectable data sampling rates. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
Applications
| Acceleration | 656ft/s2 , 200m/s2 , 20.39g (peak) |
| Velocity | 7.87in/s, 200mm/s, 19.99cm/s (peak) |
| Displacement | 0.078in, 2mm (peak-to-peak) |
| Resolution | 1ft/s2 , 0.1m/s2 , 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm |
| Basic accuracy | ±(5%+2 digits) |
| Memory | 20M data records using 2G SD card |
| Acceleration | 656ft/s2 , 200m/s2 , 20.39g (peak) |
| Velocity | 7.87in/s, 200mm/s, 19.99cm/s (peak) |
| Displacement | 0.078in, 2mm (peak-to-peak) |
| Resolution | 1ft/s2 , 0.1m/s2 , 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm |
| Basic accuracy | ±(5%+2 digits) |
| Memory | 20M data records using 2G SD card |
