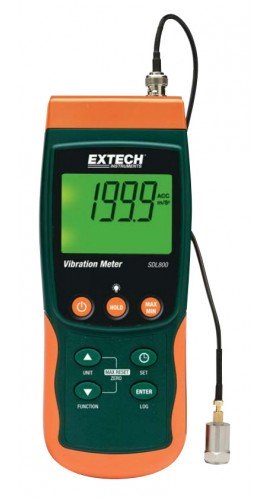

Extech SDL800 Vibration Meter/Data Logger

Model: SDL800 | UPC: 793950438015

Be the first to review this product

Extech SDL800 Vibration Meter/Data Logger-

Downloads: datasheet manual

More Extech Products

Ask an Expert

Extech SDL800 Vibration Meter/Data Logger

Model: SDL800 | UPC: 793950438015

Be the first to review this product

Measure and datalog vibration using a remote vibration sensor with magnetic adapter. Manually store 99 readings or continuously datalog using a SD memory card.

Your Price	$1299.00 USD
Availability	5 Days2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your SDL800 Vibration Meter/Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIVBM2) for only $530.00 USD

Traceable Calibration Certificate for your SDL800 Vibration Meter/Data Logger

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIVBM2) for only $530.00 USD

Recommended Accessories

Extech SDL800-CBL Replacement Cable, for vibration meter

SDL800-CBL

Extech SDL800 Offers

Features

Remote vibration sensor with magnetic adapter on 47.2" (1.2m) cable
Wide frequency range of 10Hz to 1kHz
Basic accuracy of ±(5% + 2 digits); Meets ISO2954
RMS, Peak Value or Max Hold measurement modes
Adjustable data sampling rate
Offset adjustment used for zero function to make relative measurements
Large backlit LCD
Stores 99 readings manually and continuous datalogging via SD memory card
Record/Recall MIN, MAX, Data Hold and Auto power off

Applications

Motors, Bearings, Fans, Pumps, Rotating Machinery
Automotive
Manufacturing
HVAC/R
Motors, Bearings, Fans, Pumps, Rotating Machinery

Extech SDL800 Specifications

Acceleration	656ft/s2 , 200m/s2 , 20.39g
Velocity	7.87in/s, 200mm/s, 19.99cm/s
Displacement	0.078in, 2mm (peak-to-peak)
Resolution	1ft/s2 , 0.1m/s2 , 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm
Basic Accuracy	±(5%+2 digits)
Memory	20M data records using 2G SD card

Click here for complete specifications on the Extech SDL800

What's included with the Extech SDL800

Vibration Meter/Datalogger
SD Card
Remote Sensor with Magnetic Adapter on Cable
Magnetic Mount
Hard Carrying Case
6 x AA Batteries

datasheet for the Extech SDL800 Vibration Meter/Data Logger manual for the Extech SDL800 Vibration Meter/Data Logger

Click on a category to view a selection of compatible accessories with the Extech SDL800 Vibration Meter/Data Logger.

Cables

Extech SDL800-CBL Replacement Cable, for vibration meter SDL800-CBL

The cable connects the vibration sensor to the vibration meter (sensor sold separately).

Ask a question about Extech SDL800 Vibration Meter/Data Logger

Customer Reviews for the Extech SDL800

Description ➕➖

Extech SDL800 Offers

Features

Remote vibration sensor with magnetic adapter on 47.2" (1.2m) cable
Wide frequency range of 10Hz to 1kHz
Basic accuracy of ±(5% + 2 digits); Meets ISO2954
RMS, Peak Value or Max Hold measurement modes
Adjustable data sampling rate
Offset adjustment used for zero function to make relative measurements
Large backlit LCD
Stores 99 readings manually and continuous datalogging via SD memory card
Record/Recall MIN, MAX, Data Hold and Auto power off

Applications

Motors, Bearings, Fans, Pumps, Rotating Machinery
Automotive
Manufacturing
HVAC/R
Motors, Bearings, Fans, Pumps, Rotating Machinery

Specifications ➕➖

Extech SDL800 Specifications

Acceleration	656ft/s2 , 200m/s2 , 20.39g
Velocity	7.87in/s, 200mm/s, 19.99cm/s
Displacement	0.078in, 2mm (peak-to-peak)
Resolution	1ft/s2 , 0.1m/s2 , 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm
Basic Accuracy	±(5%+2 digits)
Memory	20M data records using 2G SD card
