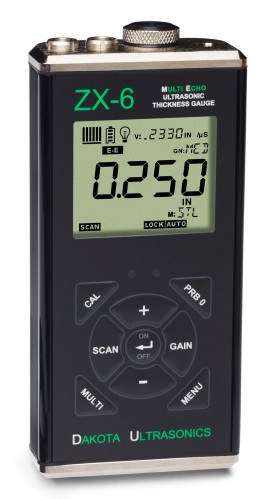

Featuring a multi-echo thickness gauge with paint measurement capability, and the ability to locate blind surface pitting and internal defects/flaws in materials. Based on the same operating principles as sonar, it is capable of measuring the thickness of various materials with an accuracy as high as ±0.001".
Featuring a multi-echo thickness gauge with paint measurement capability, and the ability to locate blind surface pitting and internal defects/flaws in materials. Based on the same operating principles as sonar, it is capable of measuring the thickness of various materials with an accuracy as high as ±0.001".
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
Applications
| Pulse-Echo (P-E) | 0.025 to 36.00" (0.63 to 914.4 mm) |
| Echo-Echo (E-E) | 0.100 to 6.00" base metal, and coating 0.001 to 0.075" (0.0254 to 1.905 mm); range dependent on material types and transducer frequency and diameter |
| Units | English & Metric |
| Resolution | 0.001" (0.01 mm) |
| Velocity Range | 0.0120 to 0.7300 in/μs (305 to 18,542 m/sec) |
| PRF | 200 Hz |
| Display Update Rate | 10 Hz |
| Gain | 40 to 52 dB range in 3 dB steps |
| Time Dependent Gain (TDG) | Used in both pulse-echo (P-E) and Echo-Echo (E-E) modes depending on transducer and frequency selected |
| Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500"
digit height Two 0.125" 14 segment fields for labels and values, and one 7 segment field for labels and values Additional icons to indicate features and modes Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options Bar graph indicates stability of reading |
| Power Source | 2 x 1.5 V alkaline, 1.2 V NiCad, or 1.5 V Lithium AA cells Typically operates for 35 hours on alkaline and 18 hours on NiCad Low battery indicator on display. Auto shut-off after 5 minutes of inactivity Line power USB-C connected to PC or power adapter |
| Certification | Factory calibration traceable to NIST & MIL-STD-45662A |
| Operating Temperature | -22 to 167°F (-30 to 75°C) |
| Dimensions | 2.5 x 5.17 x 1.24" (63.5 x 131.3 x 31.5 mm) |
| Weight | 0.69 lbs (11 oz) with batteries |
| Pulse-Echo (P-E) | 0.025 to 36.00" (0.63 to 914.4 mm) |
| Echo-Echo (E-E) | 0.100 to 6.00" base metal, and coating 0.001 to 0.075" (0.0254 to 1.905 mm); range dependent on material types and transducer frequency and diameter |
| Units | English & Metric |
| Resolution | 0.001" (0.01 mm) |
| Velocity Range | 0.0120 to 0.7300 in/μs (305 to 18,542 m/sec) |
| PRF | 200 Hz |
| Display Update Rate | 10 Hz |
| Gain | 40 to 52 dB range in 3 dB steps |
| Time Dependent Gain (TDG) | Used in both pulse-echo (P-E) and Echo-Echo (E-E) modes depending on transducer and frequency selected |
| Display | Multi-function 7 segment 4.5 digit liquid crystal display with 0.500"
digit height Two 0.125" 14 segment fields for labels and values, and one 7 segment field for labels and values Additional icons to indicate features and modes Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options Bar graph indicates stability of reading |
| Power Source | 2 x 1.5 V alkaline, 1.2 V NiCad, or 1.5 V Lithium AA cells Typically operates for 35 hours on alkaline and 18 hours on NiCad Low battery indicator on display. Auto shut-off after 5 minutes of inactivity Line power USB-C connected to PC or power adapter |
| Certification | Factory calibration traceable to NIST & MIL-STD-45662A |
| Operating Temperature | -22 to 167°F (-30 to 75°C) |
| Dimensions | 2.5 x 5.17 x 1.24" (63.5 x 131.3 x 31.5 mm) |
| Weight | 0.69 lbs (11 oz) with batteries |
