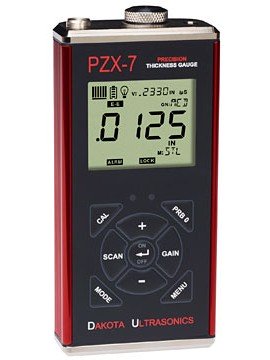

Dakota Ultrasonics PZX-7 Precision Thickness Gauge

Model: PZX-7 | Order No: Z-307-0002

Dakota Ultrasonics PZX-7 Precision Thickness Gauge

Model: PZX-7 | Order No: Z-307-0002

The precision thickness gauge is equipped with a variety of measurement modes to address a number of potential applications and can use both high and low frequency transducers with a variety of diameter options.

The precision thickness gauge is equipped with a variety of measurement modes to address a number of potential applications and can use both high and low frequency transducers with a variety of diameter options.

Your Price $2250.00 USD
Availability 1 to 2 Weeks
Quantity

Dakota Ultrasonics PZX-7 Offers

Features

  • Transducer types: single delay line and contact styles, and selectable diameters for contact style
  • High speed scan: display the lowest reading found during a scan (scan speed at 100 Hz)
  • Differential mode: display the ± difference from a nominal value entered
  • Alarm mode: high and low alarm limits with audible and visual indicators
  • VX velocity: measure in terms of velocity for modularity testing
  • Powered by: 120 MHz FPGA timing
  • 100 volt spike pulser
  • Measure modes: Pulse-Echo, Echo-Echo, Interface-Echo, and Plastics
  • Automatic time dependent gain (TDG) with manual override
  • Single element delay line and contact transducers (5 to 20 MHz)
  • Low temperature custom LCD display (-22°F [-30°C])
  • CDC compatible serial over USB
  • USB-C connectivity
  • Data: 32 megabit flash memory
  • IP65 rating

Applications

  • Precision machining
  • Aircraft
  • Thin plastics
  • Stamping
  • Automotive

Dakota Ultrasonics PZX-7 Specifications

Measurement Modes
Pulse-Echo (P-E) 0.040 to 36.0" (1.0 to 914.4 mm)
Echo-Echo (E-E) Delay line - 0.006 to 1.00" (0.152 to 25.4 mm)
Contact - 0.040 to 6.0" (1.0 to 152.4 mm)
Interface-Echo (I-E) Delay line - 0.060 to 1.0" (1.524 to 25.4 mm)
Plastics (PLAS) Graphite delay line - 0.005 to 0.250" (0.127 to 6.35 mm)
Measuring
Units English and Metric (Low and High resolution)
Resolution 0.001 or 0.0001" (0.01 or 0.001 mm)
Velocity Range 0.0120 to 0.7300 in/μs (305 to 18,542 m/sec)
PRF 200 Hz
Display Update Rate 10 Hz
Gain Automatic or manual control
Time Dependent Gain (TDG) Implemented in all measure modes
General Specifications
Transducer Single-element (delay line and contact)
5 to 20 MHz frequency range
Locking quick disconnect
LEMO 00 connector
4' cable
Display Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height
Two 0.125" 14 segment fields for labels and values, and one 7 segment field for labels and values
Additional icons to indicate features and modes
Backlight is selectable On/Off/Auto, and selectable brightness (Lo, Med, Hi) options
Bar graph indicates stability of reading
Keypad Sealed membrane that is resistant to both water and petroleum products
Nine tactile-feedback keys
Operating Temperature -22 to 167°F (-30 to 75°C)
Power Source 2 x 1.5 V alkaline, 1.2 V NiCad, or 1.5 V lithium AA cells
Typically operates for 35 hours on alkaline and 18 hours on NiCad
Low battery indicator on display
Auto shutoff after 5 minutes of inactivity
Line power USB-C connected to PC or power adapter
Dimensions 2.5 x 5.17 x 1.24" (63.5 x 131.3 x 31.5 mm)
Weight 11 oz (with batteries)
Certification Factory calibration traceable to NIST & MIL-STD-45662A
Click here for complete specifications on the Dakota Ultrasonics PZX-7

What's included with the Dakota Ultrasonics PZX-7

  • Dakota Ultrasonics PZX-7 Precision Thickness Gauge

Ask a question about Dakota Ultrasonics PZX-7 Precision Thickness Gauge

Customer Reviews for the Dakota Ultrasonics PZX-7

Dakota Ultrasonics PZX-7 Offers

Features

  • Transducer types: single delay line and contact styles, and selectable diameters for contact style
  • High speed scan: display the lowest reading found during a scan (scan speed at 100 Hz)
  • Differential mode: display the ± difference from a nominal value entered
  • Alarm mode: high and low alarm limits with audible and visual indicators
  • VX velocity: measure in terms of velocity for modularity testing
  • Powered by: 120 MHz FPGA timing
  • 100 volt spike pulser
  • Measure modes: Pulse-Echo, Echo-Echo, Interface-Echo, and Plastics
  • Automatic time dependent gain (TDG) with manual override
  • Single element delay line and contact transducers (5 to 20 MHz)
  • Low temperature custom LCD display (-22°F [-30°C])
  • CDC compatible serial over USB
  • USB-C connectivity
  • Data: 32 megabit flash memory
  • IP65 rating

Applications

  • Precision machining
  • Aircraft
  • Thin plastics
  • Stamping
  • Automotive

Dakota Ultrasonics PZX-7 Specifications

Measurement Modes
Pulse-Echo (P-E) 0.040 to 36.0" (1.0 to 914.4 mm)
Echo-Echo (E-E) Delay line - 0.006 to 1.00" (0.152 to 25.4 mm)
Contact - 0.040 to 6.0" (1.0 to 152.4 mm)
Interface-Echo (I-E) Delay line - 0.060 to 1.0" (1.524 to 25.4 mm)
Plastics (PLAS) Graphite delay line - 0.005 to 0.250" (0.127 to 6.35 mm)
Measuring
Units English and Metric (Low and High resolution)
Resolution 0.001 or 0.0001" (0.01 or 0.001 mm)
Velocity Range 0.0120 to 0.7300 in/μs (305 to 18,542 m/sec)
PRF 200 Hz
Display Update Rate 10 Hz
Gain Automatic or manual control
Time Dependent Gain (TDG) Implemented in all measure modes
General Specifications
Transducer Single-element (delay line and contact)
5 to 20 MHz frequency range
Locking quick disconnect
LEMO 00 connector
4' cable
Display Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height
Two 0.125" 14 segment fields for labels and values, and one 7 segment field for labels and values
Additional icons to indicate features and modes
Backlight is selectable On/Off/Auto, and selectable brightness (Lo, Med, Hi) options
Bar graph indicates stability of reading
Keypad Sealed membrane that is resistant to both water and petroleum products
Nine tactile-feedback keys
Operating Temperature -22 to 167°F (-30 to 75°C)
Power Source 2 x 1.5 V alkaline, 1.2 V NiCad, or 1.5 V lithium AA cells
Typically operates for 35 hours on alkaline and 18 hours on NiCad
Low battery indicator on display
Auto shutoff after 5 minutes of inactivity
Line power USB-C connected to PC or power adapter
Dimensions 2.5 x 5.17 x 1.24" (63.5 x 131.3 x 31.5 mm)
Weight 11 oz (with batteries)
Certification Factory calibration traceable to NIST & MIL-STD-45662A
Click here for complete specifications on the Dakota Ultrasonics PZX-7

What's included with the Dakota Ultrasonics PZX-7

  • Dakota Ultrasonics PZX-7 Precision Thickness Gauge

Ask a question about Dakota Ultrasonics PZX-7 Precision Thickness Gauge

Customer Reviews for the Dakota Ultrasonics PZX-7
