AEMC Instruments 203 Offers

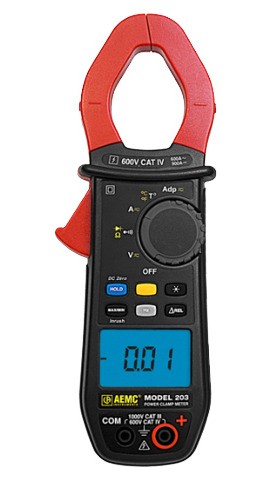

This True RMS Clamp-On Meter has been safety rated at 600V CAT IV. It measures AC and DC volts and amps, frequency, resistance, continuity, and can also perform diode checks. The Adapter mode allows external sensor inputs to be displayed. The Model 203 also measures temperature and is supplied with a K thermocouple probe. New measurements can be compared to a reference value and a MIN/MAX function by using the Delta relative function and keeps track of these high and low values.

Features

• UL94 VI flame retardant self-extinguishing
• 6000-count blue electroluminescent backlit display
• Measures up to 1000VAC (1400V peak), 1400VDC and AC+DC with resolution to 10mV
• Measures up to 600AAC and 900ADC
• Measures single- and three-phase power (real, reactive, and apparent) up to 600kW with resolution to 1W
• Measures frequency to 20kHz with 0.1Hz resolution
• Auto selects AC or DC voltage measurement
• True InRush® current measurement with 1ms capture
• Jaw opening to 1.33" (34mm); IP54 Rated
• Leads are constructed with a flexible silicone material

Applications

• Electrical maintenance and power distribution
• Safety lighting system maintenance
• Automotive test troubleshooting
• AC or DC motor testing
• Power plant troubleshooting
• Commercial, industrial residential & HVAC/R troubleshooting
• Power panel, junction box and battery bank measuring
• Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
