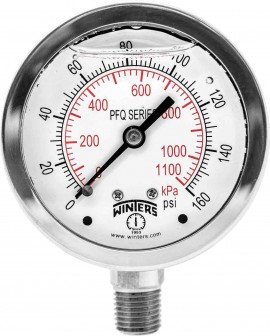

Image is for reference only, refer to product info for complete details.
Pulsation resistant liquid filled stainless steel gauge, with U-Clamp.
Pulsation resistant liquid filled stainless steel gauge, with U-Clamp.
Features
Applications
| Range | 0/160 psi/kPa |
| Dial | 2.5" white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | Brass |
| Connection | 1/4" Bottom |
| Fill Liquid | Glycerin |
| Bourdon Tube | 1.5" (40mm) 2" (50mm): Phosphor bronze C or coil shaped for brass socket SS C or coil shaped for 316 SS socket 2.5" (63mm) 4" (100mm): Phosphor bronze or lead free phosphor bronze C or coil shaped for brass socket, AISI 316 SS C or coil shaped for 316 SS socket |
| Movement | SS |
| Pointer | Aluminum, anodized black |
| Welding | Brass: Silver alloy, 316SS:TIG |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40 to 200°F (-40 to 93°C) Glycerin Filled: -4 to 150°F (-20 to 65°C) |
| Accuracy | 1.5" (40mm) 2" (50mm): ±2.5% of full scale value 2.5" (63mm) 4" (100mm): ±1.5% of full scale value |
| Enclosure Rating | IP65 |
| Range | 0/160 psi/kPa |
| Dial | 2.5" white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | Brass |
| Connection | 1/4" Bottom |
| Fill Liquid | Glycerin |
| Bourdon Tube | 1.5" (40mm) 2" (50mm): Phosphor bronze C or coil shaped for brass socket SS C or coil shaped for 316 SS socket 2.5" (63mm) 4" (100mm): Phosphor bronze or lead free phosphor bronze C or coil shaped for brass socket, AISI 316 SS C or coil shaped for 316 SS socket |
| Movement | SS |
| Pointer | Aluminum, anodized black |
| Welding | Brass: Silver alloy, 316SS:TIG |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40 to 200°F (-40 to 93°C) Glycerin Filled: -4 to 150°F (-20 to 65°C) |
| Accuracy | 1.5" (40mm) 2" (50mm): ±2.5% of full scale value 2.5" (63mm) 4" (100mm): ±1.5% of full scale value |
| Enclosure Rating | IP65 |
