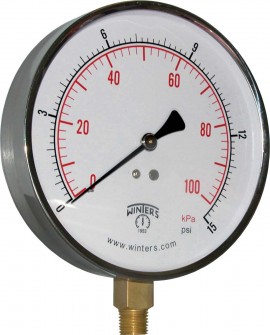

Image is for reference only, refer to product info for complete details.
Economical 4.5" (115mm) stainless steel case gauge with brass wetted parts.
Economical 4.5" (115mm) stainless steel case gauge with brass wetted parts.
Features
Applications
| Connection | 0/15 psi/kPa |
| Connection | 0/15 psi/kPa |
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | 304 SS |
| Case | 304 SS |
| Lens | Acrylic |
| Lens | Acrylic |
| Ring | 304 SS |
| Ring | 304 SS |
| Socket | Brass |
| Socket | Brass |
| Connection | 1/4" NPT standard |
| Connection | 1/4" NPT standard |
| Bourdon Tube | Phosphor bronze |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Movement | Brass |
| Pointer | Aluminum, anodized black, recalibrator screw |
| Pointer | Aluminum, anodized black, recalibrator screw |
| Welding | Silver solder |
| Welding | Silver solder |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Working Pressure | Maximum 75% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40 to 200°F (-40 to 93°C) |
| Ambient/Process Temperature | -40 to 200°F (-40 to 93°C) |
| Accuracy | ±1% ANSI/ASME Grade 1A |
| Accuracy | ±1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP52 |
| Enclosure Rating | IP52 |
