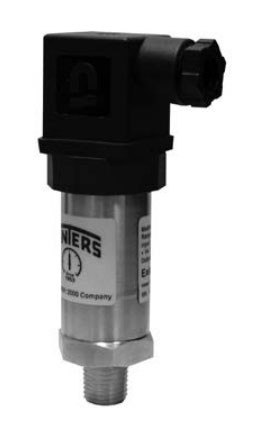

Winters LIS395 Intrinsically Safe Transmitter, 0 to 3600 psi

Downloads: datasheet

Compact, this intrinsically safe transmitter is made of stainless steel and has a ceramic sensor, and features a range of 0 to 3600 psi.

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Approved for intrinsically-safe applications in Class 1/Div. 1 hazardous areas.

Features

Applications

Range	0 to 3600
Over-Pressure	5802 psi
Burst Pressure	7252 psi
Output Signal	Standard 2-wire: 4-20 mA / Vs = 8 to 32 V DC I.S. protection: Vs = 14 to 28 V DC Optional 3-wire: 0 to 20 mA / Vs = 14 to 30 V DC 0 to 10 V / Vs = 14 to 30 V DC
Accuracy	±0.5% FSO IEC 60770
Permissible Load	Current 2-wire: Rmax = [(Vs - Vs min) / 0.02] Ohm Current 3-wire: Rmax = 500 Ohm Voltage 3-wire: Rmin = 10 kOhm
Influence Effects	Supply: 0.05% FSO / 10 V Load: 0.05% FSO / kOhm
Response Time	≤10 ms
Thermal Error	≤±0.2% FSO / 10K In compensated range: -13 to 185°F (-25 to 85°C)
Permissible Temperatures	Medium: : -40 to 257°F (-40 to 125°C) Electronics environment: -13 to 185°F (-25 to 85°C) Storage: -40 to 212°F (-40 to 100°C)
Short-circuit Protection	Permanent
Reverse Polarity Protection	No damage. No function
Electromagnetic Protection	Emission and immunity according to EN 61326
I.S. Protection	Class 1, Div. 1, Groups A, B, C and D
Stability	Vibration: 10 g RMS (25 to 2000 Hz) Shock: 500 g / 1 ms
Pollution Degree	4, electrical equipment for outdoor use
Connecting Cables	Cable capacitance: Signal line/shield and signal line/signal line: 160 pF/m Cable inductance: Signal line/shield and signal line/signal line: 1 µH/m
Pressure Port/Housing	316L SS
Wetted Parts	Seals: PP_N <1450 psi: FKM70. Others available P_N >1450 psi: FKM90. Others available Diaphragm: Ceramic AI&sub2;O&sub3; 96%
Current Consumption	Current: 25 mA maximum Voltage: 7 mA maximum
Operating Life	>100 x 10⁶ cycles
Weight	0.3 lbs (140 g)
