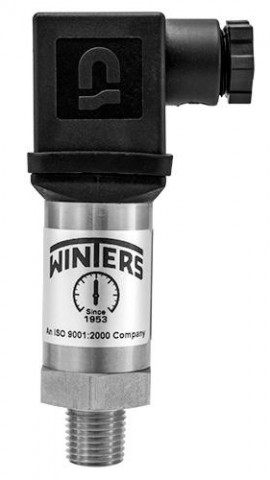

Winters LE3200 General Purpose Transmitter, 0 to 200 psi

Downloads: datasheet

Compact, this general purpose transmitter is made of stainless steel and has a ceramic sensor, and features a range of 0 to 1200 psi.

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Features

Developed for use in general industry and OEM applications, where versatility and economy are requirements
Compact stainless steel construction with ceramic sensor
Wide range of mechanical and electrical connections
±0.5% accuracy
NEMA 4X / IP65 and IP67
CE, CSA and RoHS compliant
Approved for outdoor use
Customizable

Applications

Range	0 to 200 psi
Over-Pressure	580 psi
Burst Pressure	1015 psi
Output Signal	Standard 2-wire: 4-20 mA / Vs = 8 to 32 V DC Optional 3-wire: 0 to 10 V / Vs = 14-30 V DC Optional 3-wire ratiometric: Vsig = 0.5-4.5 Vs / Vs = 5 ±0.5 V DC
Accuracy	±0.5% FSO
Permissible Load	2-wire: Rmax = [(Vs - Vs min) / 0.02] Ω 3-wire: Rmin = 10 kΩ
Influence Effects	Supply: 0.05% FSO / 10 V Load: 0.05% FSO / kΩ
Response Time	2-wire: <10 ms 3-wire: <3 ms
Measuring Rate	1 kHz
Thermal Error	<±0.5% FSO / 10K
Permissible Temperatures	Medium: -13 to 257°F (-25 to 125°C) Electronics environment: -13 to 185°F (-25 to 85°C) Storage: -40 to 185°F (-40 to 85°C)
Short-circuit Protection	Permanent 3-wire ratiometric: None
Reverse Polarity Protection	No damage. No function.
Electromagnetic Protection	Emission and immunity according to EN 61326
Stability	Vibration: 10 g, 25 Hz to 2 kHz according to DIN EN 60068-2-6 Shock: 500 g / 1 ms according to DIN EN 60068-2-27
Pollution Degree	4, electrical equipment for outdoor use
Pressure Port / Housing	304 SS
Current Consumption	2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA) 3-wire ratiometric: 1.5 mA
Long-term Stability	<±0.3% FSO/year at reference conditions
Operation Life	>100 x 106 cycles
Wetted Parts	Seals: FKM Diaphragm: Ceramic AI₂ O₃ 96%
CE Conformity	EMC directive: 2004/108/EC Pressure equipment directive: 97/23/EC (module A) Valid for devices with max permissible overpressure <3000 psi
Weight	0.2 lbs (120 g)

datasheet for the Winters LE3200 General Purpose Transmitter, 0 to 200 psi

Features

Developed for use in general industry and OEM applications, where versatility and economy are requirements
Compact stainless steel construction with ceramic sensor
Wide range of mechanical and electrical connections
±0.5% accuracy
NEMA 4X / IP65 and IP67
CE, CSA and RoHS compliant
Approved for outdoor use
Customizable

Applications

Range	0 to 200 psi
Over-Pressure	580 psi
Burst Pressure	1015 psi
Output Signal	Standard 2-wire: 4-20 mA / Vs = 8 to 32 V DC Optional 3-wire: 0 to 10 V / Vs = 14-30 V DC Optional 3-wire ratiometric: Vsig = 0.5-4.5 Vs / Vs = 5 ±0.5 V DC
Accuracy	±0.5% FSO
Permissible Load	2-wire: Rmax = [(Vs - Vs min) / 0.02] Ω 3-wire: Rmin = 10 kΩ
Influence Effects	Supply: 0.05% FSO / 10 V Load: 0.05% FSO / kΩ
Response Time	2-wire: <10 ms 3-wire: <3 ms
Measuring Rate	1 kHz
Thermal Error	<±0.5% FSO / 10K
Permissible Temperatures	Medium: -13 to 257°F (-25 to 125°C) Electronics environment: -13 to 185°F (-25 to 85°C) Storage: -40 to 185°F (-40 to 85°C)
Short-circuit Protection	Permanent 3-wire ratiometric: None
Reverse Polarity Protection	No damage. No function.
Electromagnetic Protection	Emission and immunity according to EN 61326
Stability	Vibration: 10 g, 25 Hz to 2 kHz according to DIN EN 60068-2-6 Shock: 500 g / 1 ms according to DIN EN 60068-2-27
Pollution Degree	4, electrical equipment for outdoor use
Pressure Port / Housing	304 SS
Current Consumption	2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA) 3-wire ratiometric: 1.5 mA
Long-term Stability	<±0.3% FSO/year at reference conditions
Operation Life	>100 x 106 cycles
Wetted Parts	Seals: FKM Diaphragm: Ceramic AI₂ O₃ 96%
CE Conformity	EMC directive: 2004/108/EC Pressure equipment directive: 97/23/EC (module A) Valid for devices with max permissible overpressure <3000 psi
Weight	0.2 lbs (120 g)
