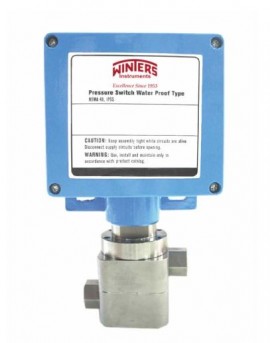

Made of cast aluminum, this differential pressure switch has a range of 7 to 100 psi.
Made of cast aluminum, this differential pressure switch has a range of 7 to 100 psi.
General purpose watertight differential pressure switch
Features
Applications
| Housing | Heavy-duty die-cast aluminum, blue colour |
| Adjustable Range PSI | 7-100 psi |
| Dead Band PSI | 0.35-5 psi |
| Proof Pressure PSI | 1000 psi |
| Pressure Connection | 1/4” NPT |
| Electrical Connection | 1/2” NPT |
| Accuracy | +/- 1% of the adjustable set-point range |
| Pressure Connection | Female 1/4" NPT or BSP |
| Electrical Connection | Female 1/2" or 3/4" NPT, M20xP1.5 |
| Wetted Parts | Low pressure ranges - 316 Stainless Steel welded & Titanium High pressure ranges - 316 Stainless Steel welded |
| Set Point Adjustment | Field selectable |
| Deadband | Fixed, see Order Codes |
| Contact Rating | 15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC Gold contact microswitch 1A @ 125/250VAC |
| No. of Contacts | 1 x SPDT or 2 x SPDT |
| Ambient/Process Temperature | -30 to 205 deg C (-22 to 400 deg F) |
| Enclosure Rating | NEMA 4 & 4X, IP66 Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion |
| Approvals | RU recognized, file no E12252 (switch only), CRN registration pending |
| Weight | 4.95 lbs (2.25 kg) |
