WIKA 14010480 Offers

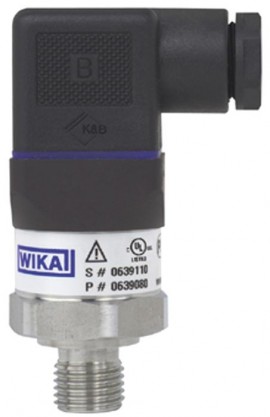

This pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications.

Performance and reliability is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long term reliability.

Features

• Process connection: ¼" NPT male
• Electrical Connection: DIN EN 175301-803 A angular connector
• Measuring ranges from 0 ... 0.05 to 0 ... 1,000 bar
• Non-linearity 0.25 % or 0.5 %
• Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
• Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2 m

Applications

• Machine building
• Shipbuilding
• Measurement and control technology
• Hydraulics and pneumatics
• Pumps and compressors
