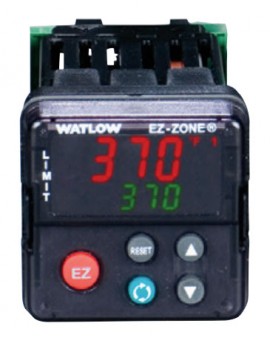

Watlow EZ-ZONE PM Express Panel Mount Controller, ¹⁄₁₆ DIN, 100 to 240 V AC

Model: PM6C1EJ-AAAABAA

Be the first to review this product

Watlow EZ-ZONE PM Express Panel Mount Controller, <sup>1</sup>&frasl;<sub>16</sub> DIN, 100 to 240 V AC-

Downloads: datasheet manual

More Watlow Products

Ask an Expert

Watlow EZ-ZONE PM Express Panel Mount Controller, ¹⁄₁₆ DIN, 100 to 240 V AC

Model: PM6C1EJ-AAAABAA

Be the first to review this product

Simple to use, this ¹⁄₁₆ DIN panel mount controller is for basic applications or usage levels, and allows optimal performance utilizing simple control and menu functionality without complex features. In addition, this controller has a power supply of 100 to 240 V AC and two outputs: mechanical relay 5 A, Form C and A.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Process Controllers category for similar products.

Or let's do a search and help you find what you need:

Watlow PM6C1EJ-AAAABAA Offers

Features

Simplified menu: Fits basic applications with a user-friendly interface supported by two menus and a streamlined list of parameters, eliminates user complexity often experienced with more advanced controllers and unnecessary features, and reduces user training costs and user programming errors
PID auto-tune: Provides auto-tune for fast, efficient start-up
Standard bus communications: Allows easy product configuration via PC communications protocol and free software, and saves time, simplifies programming process and improves reliability of controller setup
Agency approvals: UL® listed, CSA, CE, RoHS, W.E.E.E., FM, SEMI F47-0200: Assures prompt product acceptance, and reduces end product documentation costs
Front panel removable: Saves time and labor with replacements and troubleshooting
P3T armor sealing system: Compiles to NEMA 4X, IP65 specifications, allows controller to be cleaned and washed, and certified UL® 50 independent to NEMA 4X specification
Touch-safe package: Increases installer and operator safety, and complies with IP2X requirements
High-amperage power control output: Drives 15 A resistive loads direct, reduces component count, saves panel space and simplifies wiring, and reduces cost of ownership

Applications

Foodservice equipment
Photovoltaic processing equipment

Watlow PM6C1EJ-AAAABAA Specifications

Controller	User selectable heat/cool, on-off, P, PI, PD, PID or alarm action, not valid for limit controllers Auto-tune with control algorithm Control sampling rates: input = 10 Hz, outputs = 10 Hz Input and output capacity per controller type ordering information
Serial Communications	Isolated communications Standard bus configuration protocol
Wiring Termination - Touch-Safe Terminals	Input, power and controller output terminals are touch safe removable 12 to 22 AWG
Universal Input	Thermocouple, grounded or ungrounded sensors, greater than 20 MΩ input impedance, 2 kΩ source resistance maximum Non-isolated to switched DC and process output RTD 2- or 3-wire, platinum, 100 Ω at 0°C calibration to DIN curve (0.00385 Ω/Ω/°C) Process, 4 to 20 mA at 100 Ω, or 0 to 10 V DC at 20 kΩ input impedance; scalable
Functional Operating Range	Type J: -346 to 2192°F (-210 to 1200°C) Type K: -454 to 2500°F (-270 to 1371°C) Type T: -454 to 750°F (-270 to 400°C) Type E: -454 to 1832°F (-270 to 1000°C) Type N: -454 to 2372°F (-270 to 1300°C) Type C: 32 to 4200°F (0 to 2315°C) Type D: 32 to 4200°F (0 to 2315°C) Type F: 32 to 2449°F (0 to 1343°C) Type R: -58 to 3214°F (-50 to 1767°C) Type S: -58 to 3214°F (-50 to 1767°C) Type B: 32 to 3300°F (0 to 1816°C) RTD (DIN): -328 to 1472°F (-200 to 800°C) Process: -1999 to 9999 units
Accuracy	Calibration accuracy and sensor conformity: ±0.1% of span, ±1°C at the calibrated ambient temperature and rated line voltage Type R, S, B: 0.2% Type T below -50°C: 0.2% Calibration ambient temperature at 77°F ±5°F (25°C ±3°C) Accuracy span: 1000°F (540°C) minimum Temperature stability: ±0.1°F/°F (±0.1°C/°C) rise in ambient maximum
Line Voltage/Power	10 VA maximum power consumption Data retention upon power failure via non-volatile memory Compliant with SEMI F47-0200, Figure R1-1 voltage sag requirements at 24 V AC or higher
Environment	Operating temperature: 0 to 149°F (-18 to 65°C) Storage temperature: -40 to 185°F (-40 to 85°C) 0 to 90% RH, non-condensing
Agency Approvals	cULus® UL/EN/CSA C22.2 No 61010-1 Listed, File E185611 CSA C22.2 No. 24, File 158031 UL® 50 4X indoor locations, NEMA 4X, IP65 front seal CE, RoHS by design, W.E.E.E. FM Class 3545 (limit controls)
Output Hardware	Electromechanical relay, Form C, 24 to 240 V AC or 30 V DC maximum, 5 A resistive load, 100,000 cycles at rated load Electromechanical relay, Form A, 24 to 240 V AC or 30 V DC maximum, 5 A resistive load, 100,000 cycles at rated load
Operator Interface	Dual 4 digit, 7 segment LED displays Typical display update rate 1Hz Advance, infinity (RESET), up and down keys plus an EZ-KEY
DIN Size	¹⁄₁₆
Dimensions	4.68 x 2.1 x 2.1 (118.91 x 53.34 x 53.34 mm)
Weight	0.88 lbs (0.399 kg)

Click here for complete specifications on the Watlow PM6C1EJ-AAAABAA

What's included with the Watlow PM6C1EJ-AAAABAA

Panel Mount Controller
Three-Year Warranty

datasheet for the Watlow EZ-ZONE PM Express Panel Mount Controller, ¹⁄₁₆ DIN, 100 to 240 V AC manual for the Watlow EZ-ZONE PM Express Panel Mount Controller, ¹⁄₁₆ DIN, 100 to 240 V AC
