Veris HWL2XSTA Deluxe Wall Humidity Sensor, 50 to 95°F and 32 to 122°F

Model: HWL2XSTA

Be the first to review this product

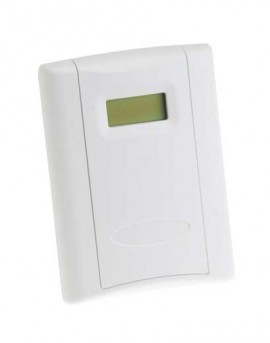

The humidity monitoring deluxe wall sensor features low-profile housing with an LCD for easy visibility. Transmitter offers 50 to 95°F (10 to 35°C) and 32 to 122°F (0 to 50°C). Switchable.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Veris HW2LA2A Wall Humidity Sensor with 3-button LCD

Model: HW2LA2A

Versatile and easy to use, this humidity wall sensor features a large color touchscreen. With 2% measurement accuracy, this unit provides reliable results and comes equipped with a temperature and humidity sensor.

Learn More

Veris HWL2XSTA Offers

The humidity monitoring deluxe wall sensor features low-profile housing with an LCD for easy visibility. Transmitter offers 50 to 95°F (10 to 35°C) and 32 to 122°F (0 to 50°C). Switchable.

Features

Thin-film polymer capacitive sensor element recovers from 100% saturation
Replace element in the field to maintain accuracy and minimize downtime
Polarity insensitive analog output provides flexible systems compatibility to save time in the field, and to stock fewer devices
HS element is microprocessor profiled with on-board nonvolatile memory

Applications

Managing Energy Systems
Controlling HVAC/R Systems for Improved Comfort and Energy Savings
Museums, Schools, Printing Shops and Other Locations Requiring Humidity Control
Facilitating Compliance with ASHRAE Standards for Environmental Control and Indoor Air Quality

Veris HWL2XSTA Specifications

HS Element	Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138
Accuracy	±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80%
Reset Rate	24 hours
Stability	±1% at 68°F (20°C) annually, for 2 years
Operating Humidity Range	0 to 100% RH (non-condensing)
Hysteresis	1.5% typical
Temperature Coefficient	±0.1% RH/°C above or below 77°F (25°C) (typical)
Analog Output	4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity
Scaling	0 to 100% RH
Operating Temperature Range	50 to 95°F (10 to 35°C)
Input Power	4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max
Temperature Transmitter Output	Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical

Click here for complete specifications on the Veris HWL2XSTA

What's included with the Veris HWL2XSTA

Veris HWL2XSTA Deluxe Wall Humidity Sensor, 50 to 95°F and 32 to 122°F

datasheet for the Veris HWL2XSTA Deluxe Wall Humidity Sensor, 50 to 95°F and 32 to 122°F

Ask a question about Veris HWL2XSTA Deluxe Wall Humidity Sensor, 50 to 95°F and 32 to 122°F

Customer Reviews for the Veris HWL2XSTA

Description ➕➖

Veris HWL2XSTA Offers

The humidity monitoring deluxe wall sensor features low-profile housing with an LCD for easy visibility. Transmitter offers 50 to 95°F (10 to 35°C) and 32 to 122°F (0 to 50°C). Switchable.

Features

Thin-film polymer capacitive sensor element recovers from 100% saturation
Replace element in the field to maintain accuracy and minimize downtime
Polarity insensitive analog output provides flexible systems compatibility to save time in the field, and to stock fewer devices
HS element is microprocessor profiled with on-board nonvolatile memory

Applications

Managing Energy Systems
Controlling HVAC/R Systems for Improved Comfort and Energy Savings
Museums, Schools, Printing Shops and Other Locations Requiring Humidity Control
Facilitating Compliance with ASHRAE Standards for Environmental Control and Indoor Air Quality

Specifications ➕➖

Veris HWL2XSTA Specifications

HS Element	Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138
Accuracy	±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80%
Reset Rate	24 hours
Stability	±1% at 68°F (20°C) annually, for 2 years
Operating Humidity Range	0 to 100% RH (non-condensing)
Hysteresis	1.5% typical
Temperature Coefficient	±0.1% RH/°C above or below 77°F (25°C) (typical)
Analog Output	4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity
Scaling	0 to 100% RH
Operating Temperature Range	50 to 95°F (10 to 35°C)
Input Power	4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max
Temperature Transmitter Output	Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical
