Veris HW2XA2R Wall Humidity Sensor, 10k curve G thernistor

Model: HW2XA2R

Be the first to review this product

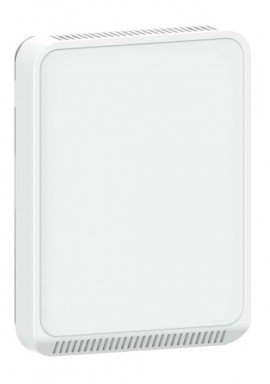

Versatile and easy to use, this humidity wall sensor features a blank white user interface. Installs effortlessly, this sensor features a 10k curve G thermistor. With 2% measurement accuracy, the unit provides reliable results and comes equipped with a temperature and humidity sensor.

Sale Price	$202.27 USD
Regular Price	$614.30 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Veris HW2XA2R Offers

Compatible with various BAS controllers, this wall-mount humidity sensor provides flexible and reliable humidity and temperature control.

Features

Thin-film capacitive sensor element recovers from 100% saturation
Replace element in the field maintains accuracy and minimize downtime
Fully interchangeable element to 1% or 2% accuracy with NIST calibration certificate
Large wiring terminals on baseplate and snap-on covers with security screw simplify installation and service
Polarity insensitive, two-wire 4 to 20 mA or 3-wire 0 to 5/0 to 10 Vdc versions
Flexible systems compatibility saves time in the field, stock fewer devices
Calibration-free interchangeable NIST traceable HS element

Applications

Controlling HVAC/R systems for improved comfort and energy savings
Museums, schools, printing shops, and other locations requiring humidity control
Facilitating compliance with ASHRAE standards for environmental control and indoor air quality

Veris HW2XA2R Specifications

Color	Matte white
Electrical Wiring Size	Screw terminals, 18 to 24 AWG
Enclosure Material	High impact ABS plastic
Humidity Measurement	Accuracy: ±2% from 10 to 80% RH at 77°F (25°C) Range: 0 to 100% RH Resolution: 0.1% RH Sensor Type: thin-film capacitive, replaceable
IP Protection	IP20
Input Specifications	Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Measurement Type	RH / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	32 to 122°F (0 to 50°C)
Output Specifications	Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
Outputs	Analog
Override	No
Setpoint	No
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement	Accuracy: ±0.4°F (±0.2°C) typical Range: 32 to 122°F (0 to 50°C) Resolution: 0.1°F (0.1& k US

Click here for complete specifications on the Veris HW2XA2R

What's included with the Veris HW2XA2R

Veris HW2XA2R Wall Humidity Sensor, 10k curve G thernistor

datasheet for the Veris HW2XA2R Wall Humidity Sensor, 10k curve G thernistor manual for the Veris HW2XA2R Wall Humidity Sensor, 10k curve G thernistor

Ask a question about Veris HW2XA2R Wall Humidity Sensor, 10k curve G thernistor

Customer Reviews for the Veris HW2XA2R

Description ➕➖

Veris HW2XA2R Offers

Compatible with various BAS controllers, this wall-mount humidity sensor provides flexible and reliable humidity and temperature control.

Features

Thin-film capacitive sensor element recovers from 100% saturation
Replace element in the field maintains accuracy and minimize downtime
Fully interchangeable element to 1% or 2% accuracy with NIST calibration certificate
Large wiring terminals on baseplate and snap-on covers with security screw simplify installation and service
Polarity insensitive, two-wire 4 to 20 mA or 3-wire 0 to 5/0 to 10 Vdc versions
Flexible systems compatibility saves time in the field, stock fewer devices
Calibration-free interchangeable NIST traceable HS element

Applications

Controlling HVAC/R systems for improved comfort and energy savings
Museums, schools, printing shops, and other locations requiring humidity control
Facilitating compliance with ASHRAE standards for environmental control and indoor air quality

Specifications ➕➖

Veris HW2XA2R Specifications

Color	Matte white
Electrical Wiring Size	Screw terminals, 18 to 24 AWG
Enclosure Material	High impact ABS plastic
Humidity Measurement	Accuracy: ±2% from 10 to 80% RH at 77°F (25°C) Range: 0 to 100% RH Resolution: 0.1% RH Sensor Type: thin-film capacitive, replaceable
IP Protection	IP20
Input Specifications	Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Measurement Type	RH / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	32 to 122°F (0 to 50°C)
Output Specifications	Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
Outputs	Analog
Override	No
Setpoint	No
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement	Accuracy: ±0.4°F (±0.2°C) typical Range: 32 to 122°F (0 to 50°C) Resolution: 0.1°F (0.1& k US
