VEE GEE 1482FLI Trinocular Fluorescence Microscope, brightfield/darkfield, 10X eyepieces

Model: 1482FLI

Be the first to review this product

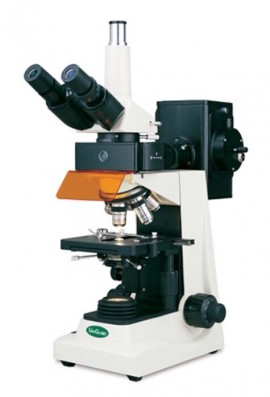

VEE GEE 1482FLI Trinocular Fluorescence Microscope, brightfield/darkfield, 10X eyepieces-

Downloads: manual

More VEE GEE Products

Ask an Expert

VEE GEE 1482FLI Trinocular Fluorescence Microscope, brightfield/darkfield, 10X eyepieces

Model: 1482FLI

Be the first to review this product

Designed with highly-advanced features and optics, this infinity-corrected fluorescence microscope displays fluorescence images with utmost clarity. Provides interpupillary and dioptric adjustments and includes a brightfield condenser with an 0.73" (18.5 mm) field of view eyepiece.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

VEE GEE 1482FLI Offers

Features

Viewing Head: Trinocular (Seidentopf). Feature interpupillary and dioptric adjustment
Eyepieces: 10X high eyepoint, widefield with an 0.7" (18.5 mm) field of view
Nosepiece: Quintuple, reversed, ball-bearing nosepiece with highgrade lubricant and positive stops
Objectives: Plan achromatic, fluorescence objectives come standard
Stage: 6.3 x 5.5" (160 x 140 mm) with a removable spring-clip slide holder and a chemical-resistant finish
Focusing Movement: Coaxial, ultra low-position coarse and fine focus controls feature a 1.6" (40 mm) focusing range and are graduated to 2 microns per division. Fitted with tension adjustment and safety autostop
Lower Illumination: 20 W variable quartz halogen light source
Upper Illumination: Features a 100 W HBO mercury light source mounted to the rear of the microscope and protected by a sturdy, all-metal housing

VEE GEE 1482FLI Specifications

Viewing Head	Trinocular - Seidentopf
Head	Rotation: 360° Inclination: 30°
Sliding Prism	70/30 split
Interpupillary Adjustment	2.7 to 3" (55 to 75 mm)
Dioptric Adjustment	-5 to +5
Eyepiece Magnification	10 x widefield, high eyepoint Field Diameter: 0.7" (18.5 mm)
Nosepiece	Quintuple/reversed
Fluorescence Objectives	4X (0.10 N.A., 17.0 mm W.D., 4.5 mm F.O.V.) 10X (0.25 N.A., 8.0mm W.D., 1.8mm F.O.V.) , 40X (0.65 N.A., 0.40mm W.D., 0.45mm F.O.V.) 100X (1.25 N.A., 0.25mm W.D., 0.18mm F.O.V.)
Illuminations	Lower: 20 W/ 6 V variable quartz halogen with Kohler field diaphragm Upper: 100 W HBO Mercury
Stage Movement Range	2 x 3" (50 x 75 mm)
Focusing	Movement: Coaxial coarse and fine controls/safety autostop Range: 1.6" (40 mm) Graduation: 2 Microns/Division
Brightfield Condenser	1.25 N.A. Abbe Condenser with Iris Diaphragm
Dimensions	Stage: 6.3 x 6" (160 x 140 mm) Overall: 8.9 x 6.3 x 18.3" (225 x 160 x 465 mm)
Weight	23.6 lb (10.7 kg)

What's included with the VEE GEE 1482FLI

Fluorescence Microscope
Trinocular Head
Stand
Brightfield Condenser
Epi-Illumination Assembly
External Power Supply
2 x Eyepieces
4 x Objectives
UV Shield
Neutral Filter
Blue Filter
100 W Mercury Lamp
Spare 20 W Halogen Lamp
2 x Spare Microscope Fuse
2 x Spare Power Supply Fuse
2 x Eyecups
Tension Wrench
3 x Power Cord
Dust Cover
Instruction Manual
Five-Year Warranty
