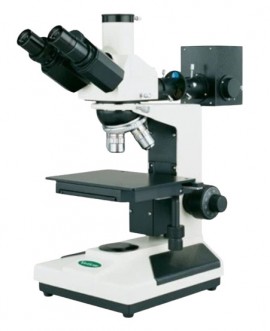

VEE GEE 1241MM Industrial Metallurgical Microscope, reflected illumination-

Downloads: datasheet

More VEE GEE Products

Ask an Expert

VEE GEE 1241MM Industrial Metallurgical Microscope, reflected illumination

Model: 1241MM

Be the first to review this product

Widely used in industrial applications, this metallurgical microscope has reflected illumination ideal for integrated circuits and electronic components inspection. In addition, it has a trinocular head, quadruple nosepiece, and plan achromatic objective with 5x, 10x, 20x, and 40x magnification.

Discontinued!

This product has been discontinued and is no longer available. There are no replacement options.

We can help you find what you need:

VEE GEE 1241MM Offers

Features

Viewing Head: Trinocular (Seidentopf) heads rotate 360° and are inclined at 30° with interpupillary and dioptric adjustment. The heads feature a sliding main prism (100/100 split) to provide either 100% of the image to the vertical tube, or 100% of the image to the eyepieces
Eyepieces: 10X Widefield (DIN) with a field number of 18
Nosepiece: Quadruple, reversed, ball-bearing nosepiece with high-grade lubricant and positive stops. The nosepiece is reversed (inward facing) to allow for easier manipulation of slides and to aid in keeping the objectives clean.
Objectives: Plan achromatic objectives made to DIN standards and are coated
Stage: Delivering a high level of fluid motion control and longevity, the stage is controlled by a right-hand, low-position coaxial control and is driven by a rack and pinion system
Focusing Movement: Coaxial, low-position coarse and fine focus controls feature a 1.6" (40 mm) focusing range and are graduated to 2 microns per division. Fitted with tension adjustment and safety autostop
Upper Illumination System: Condenser, iris diaphragm; four-color filter wheel (yellow, green, blue, and neutral); polarizing filter
Upper Illumination: 20 W variable quartz halogen light source

Applications

Integrated circuits
Electronic components inspection

VEE GEE 1241MM Specifications

Head	Viewing Head: Trinocular Head Type: Seidentopf Rotation: 360° Inclination: 30°
Sliding Prism	100 / 100 split
Interpupillary Adjustment	2.2 to 3" (55 to 75 mm)
Dioptric Adjustment	-5 to +5
Eyepiece	Magnification: 10X widefield Field Diameter: 0.7" (18 mm)
Stage	Dimensions: 5.5 x 7.3" (140 x 185 mm) Movement Range: 1.9 x 2.8" (30 x 70 mm)
Focusing Range	1.6 " (40 mm)
Brightfield Condenser	1.25 N.A. Abbe condenser with iris diaphragm
Dimensions	9.8 x 7.9 x 17" (250 x 200 x 435 mm)
Weight	19 lbs (8.6 kg)

Click here for complete specifications on the VEE GEE 1241MM

What's included with the VEE GEE 1241MM

Industrial Microscope
20 W Halogen Lamp
Fuse
Dust Cover
Operation Manual
