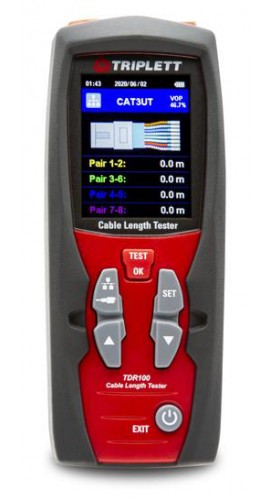

Using TDR (Time Domain Reflectometer) Technology, the precision length tester accurately measures cable length. For use on any cable consisting of at least two insulated metallic elements, the meter features automatic internal matching networks to test with an automatic selection range.
Using TDR (Time Domain Reflectometer) Technology, the precision length tester accurately measures cable length. For use on any cable consisting of at least two insulated metallic elements, the meter features automatic internal matching networks to test with an automatic selection range.
Features
| Minimum Distance | >5 m |
| Maximum Distance | Dependent upon the cable's V.O.P. 3 km at V.O.P ≤99.9% 2.4 km at V.O.P ≤80% 2 km at V.O.P ≤66% 1.5 km at V.O.P ≤50% |
| Resolution | 0.1 m |
| Accuracy | ±(2% ±0.2 m) <100 m; ±(2% ± 0.5 m)≥100 m |
| Velocity Factor | Adjustable from 1 to 99.9% |
| Cable Library | 20 standard cable types |
| Memory Location | 99 for custom cable types |
| Power | 2 x AA batteries |
| Dimensions | 6 x 2.4 x 1.3" (152 x 61 x 34 mm) |
| Weight | 8 oz (230 g) |
| Minimum Distance | >5 m |
| Maximum Distance | Dependent upon the cable's V.O.P. 3 km at V.O.P ≤99.9% 2.4 km at V.O.P ≤80% 2 km at V.O.P ≤66% 1.5 km at V.O.P ≤50% |
| Resolution | 0.1 m |
| Accuracy | ±(2% ±0.2 m) <100 m; ±(2% ± 0.5 m)≥100 m |
| Velocity Factor | Adjustable from 1 to 99.9% |
| Cable Library | 20 standard cable types |
| Memory Location | 99 for custom cable types |
| Power | 2 x AA batteries |
| Dimensions | 6 x 2.4 x 1.3" (152 x 61 x 34 mm) |
| Weight | 8 oz (230 g) |
