Built for accurate non-contact electrostatic measurements, this static field meter measures electrostatic charges from −19.999 kV to +19.999 kV at a 1" (2.54 cm) distance. Readings are displayed on a 4.5-digit (19,999-count) backlit LCD for clear and precise results.
Built for accurate non-contact electrostatic measurements, this static field meter measures electrostatic charges from −19.999 kV to +19.999 kV at a 1" (2.54 cm) distance. Readings are displayed on a 4.5-digit (19,999-count) backlit LCD for clear and precise results.

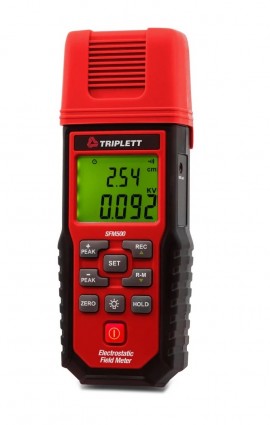

The Triplett Model SFM500 Electrostatic Field Meter features user programmable audible high/low alarm settings, Data hold function that freezes the reading on the display, Min/Max captures the highest and lowest readings, and a Zero function that clears residual readings on the display and resets it to zero. You can manually store/recall 99 readings. Additional features include a low battery indicator, Auto power off (with disable) to conserve battery life, and a tripod mount for hands-free operation.
Features
Applications
| Measuring Range | -19.999 to 19.999 kV |
| Resolution | 0.001 kV |
| Accuracy | ±(5% + 10 digits) |
| Sample Rate | 500 ms |
| Measuring Distance | 1" (2.54 cm) |
| High/Low Alarms | 0.001 to 18.000 kV |
| Memory | Manually store/recall 99 readings |
| Power | 9 V battery |
| Dimensions | 5.8 x 2.6 x 1.5" (148 x 65 x 37.5 mm) |
| Weight | 7.4 oz (210 g) |
| Measuring Range | -19.999 to 19.999 kV |
| Resolution | 0.001 kV |
| Accuracy | ±(5% + 10 digits) |
| Sample Rate | 500 ms |
| Measuring Distance | 1" (2.54 cm) |
| High/Low Alarms | 0.001 to 18.000 kV |
| Memory | Manually store/recall 99 readings |
| Power | 9 V battery |
| Dimensions | 5.8 x 2.6 x 1.5" (148 x 65 x 37.5 mm) |
| Weight | 7.4 oz (210 g) |
