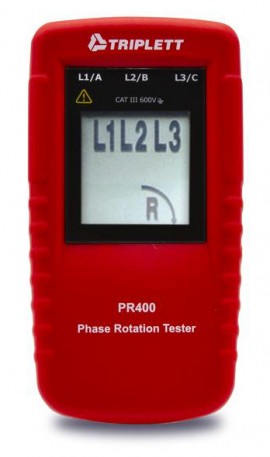

Handheld and easy to use, the phase rotation tester determines correct phase wiring sequences for three-phase system installations. With color-coded test leads and a graphical display, phase direction (clockwise/counter-clockwise) and live phases are effortless to identify.
Handheld and easy to use, the phase rotation tester determines correct phase wiring sequences for three-phase system installations. With color-coded test leads and a graphical display, phase direction (clockwise/counter-clockwise) and live phases are effortless to identify.
Features
Applications
| Phase Voltage Range | 40 to 600 VAC |
| Current Pickup | 1 mA |
| Nominal Test current (per phase) | 1 mA |
| Maximum Operating Voltage | 600 V |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Bandwidth | 15 to 400 Hz |
| Motor Rotation | No |
| Type of Protection | IP 40 |
| Safety Category | CATIII 600 V |
| Dimensions | 5.1 x 2.7 x 1.3" (130 x 69 x 32 mm) |
| Weight | 4.6 oz (130 g) |
| Phase Voltage Range | 40 to 600 VAC |
| Current Pickup | 1 mA |
| Nominal Test current (per phase) | 1 mA |
| Maximum Operating Voltage | 600 V |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Bandwidth | 15 to 400 Hz |
| Motor Rotation | No |
| Type of Protection | IP 40 |
| Safety Category | CATIII 600 V |
| Dimensions | 5.1 x 2.7 x 1.3" (130 x 69 x 32 mm) |
| Weight | 4.6 oz (130 g) |
