Triplett PCAL100 Temperature Calibrator

Model: PCAL100 | UPC: 614395005436

Be the first to review this product

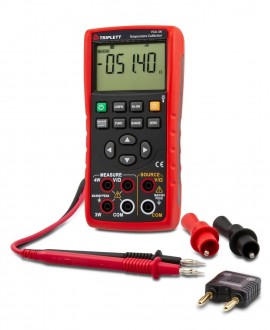

Triplett PCAL100 Temperature Calibrator-

Downloads: datasheet manual

More Triplett Products

Ask an Expert

Triplett PCAL100 Temperature Calibrator

Model: PCAL100 | UPC: 614395005436

Be the first to review this product

Combining voltage, resistance, and temperature process functions in one unit, this multifunction temperature calibrator is ideal for a wide range of industrial applications. In addition, it features source and measure accuracy up to 0.05%, 2-, 3- and 4-wire resistance and thermal resistance (RTD) measurement and can measure and source 11 Thermocouple and 5 RTD types.

Sale Price	$393.52 USD
Regular Price	$494.99 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your PCAL100 Temperature Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICA2) for only $210.00 USD

Traceable Calibration Certificate for your PCAL100 Temperature Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICA2) for only $210.00 USD

Triplett PCAL100 Offers

The Triplett PCAL100 Multifunction Process Calibrator features include adjustable temperature compensation, built-in flashlight, and Auto power off to conserve battery life.

Features

Easily measure and source voltage, resistance, and temperature process parameters in one tool
High precision: Achieve accurate results with source and measure accuracy up to 0.05%, ensuring reliable data in critical applications
Multi-sensor capability: Measure and source 11 thermocouple types and 5 RTD types
Adjustable temperature compensation: ensures accurate readings across different environments
Multi-wire resistance measurement: Conduct 2-, 3-, and 4-wire resistance measurements along with thermal resistance (RTD)
Built-in functions: Flashlight, Auto Power Off, Lo Battery Indicator

Applications

Industrial Maintenance and Calibration
HVAC/R System Testing and Calibration
Laboratory Research and Development
Quality Control in Manufacturing
Automotive Diagnostics
Food Industry Compliance
Pharmaceutical Process Validation
Energy Management Systems
Environmental Monitoring
Educational Training

Triplett PCAL100 Specifications

Measurement
Thermocouples	R,S,K,E,J,T,N,B,A,C,D ±(0.05%)
RTDs	Pt100-385/Pt200-385 Pt500-385/Pt1000-385/CU50 ±(0.05%)
DC Voltage	100 mV/1 V/30 V (0.01 mV) ±(0.05%)
Resistance	500 Ω/5000 Ω (0.01Ω) ±(0.05%)
Continuity	≤50 Ω (beeper)
Source
Thermocouples	R,S,K,E,J,T,N,B,A,C,D ±(0.05%)
RTDs	Pt100-385/Pt200-385 Pt500-385/Pt1000-385/CU50 ±(0.05%)
DC Voltage	100 mV/1 V (0.01 mV) ±(0.05%)
Resistance	400 Ω/4000 Ω (0.1 Ω ) ±(0.05%)
General Specifications
Power	3 x AA batteries
Dimensions	7 x 3.5 x 2" (178 x 89 x 51 mm)
Weight	1 lbs (454 g)

Click here for complete specifications on the Triplett PCAL100

What's included with the Triplett PCAL100

Temperature Calibrator
Test Leads
Thermocouple Adapter
Latch Key (for opening battery door)
3 x AA Batteries
One-Year Warranty

datasheet for the Triplett PCAL100 Temperature Calibrator manual for the Triplett PCAL100 Temperature Calibrator
