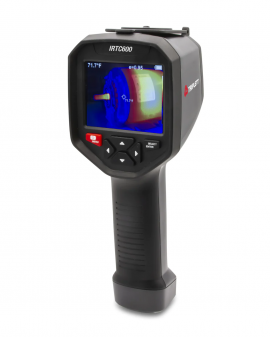

Built-in visible light camera (640 x 480) to select Infrared/Visible Light/Fusion display modes, this thermal imaging camera has 220 x 160 pixels IR resolution. Additionally, it has a user-selectable degree of fusion, an easy-to-use menu, real-time clock/calendar, and auto power off with disable.
Built-in visible light camera (640 x 480) to select Infrared/Visible Light/Fusion display modes, this thermal imaging camera has 220 x 160 pixels IR resolution. Additionally, it has a user-selectable degree of fusion, an easy-to-use menu, real-time clock/calendar, and auto power off with disable.
Features
Applications
| Display | EBTN (2000 count) |
| IR Resolution | 220 x 160 pixels (35,200) |
| Thermal Sensitivity/NETD | ≤70 mk |
| Basic Accuracy | ±2% or ± 35.6°F (2°C) |
| Response Time | 10 ms |
| FOV | 35 x 26° |
| Minimum Focus Distance | 5.9" (0.15 m) fixed focus |
| Image Frequency | 9 Hz |
| Spectral Response | 8 to 14 µm |
| Emissivity | Adjustable 0.01 to 1.0 |
| Screen Size | 3.2" (81.3 mm) color TFT |
| Power | Rechargeable 3.7 V lithium ion |
| Temperature Range | -4 to 572°F (-20 to 300°C) |
| Dimensions | 8.8 x 4.1 x 3.5" (223 x 105 x 90 mm) |
| Weight | 0.86 lb (389 g) |
