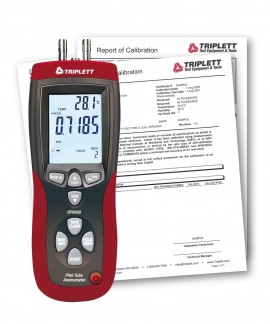

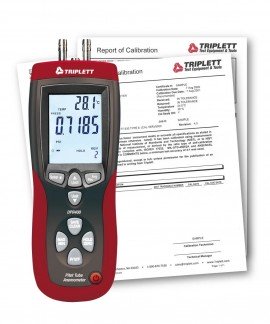

Triplett DPR400-NIST Pitot Tube Anemometer, 32 to 122°F includes Traceable Calibration Certificate

Model: DPR400-NIST | UPC: 614395005238

Triplett DPR400-NIST Pitot Tube Anemometer, 32 to 122°F includes Traceable Calibration Certificate

Model: DPR400-NIST | UPC: 614395005238

A versatile meter that measures pressure, air velocity, air flow, and temperature. It can display gauge pressure from a single source or differential pressure between two points, making it ideal for HVAC diagnostics and airflow troubleshooting. It delivers reliable performance across a wide temperature range. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Sale Price	$647.12 USD
Regular Price	$813.99 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Triplett DPR400-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

Measurements are viewed on the large backlit LCD display
Use one input to measure the gauge pressure of a single source
Use both inputs to measure the differential pressure between two points
Duct shape and parameter settings for airflow measurement are recalled at power up
Zero display adjust for all three modes
Store/Recall up to 99 readings in each mode
Stored readings can be downloaded via USB interface to your PC using the included software
Real time Data Acquisition for viewing and storing readings directly on your PC
Minimum/Maximum/Average records highest, lowest and average readings with relative time stamp
Data Hold momentarily freezes the displayed reading for easy viewing
Low battery indicator
Auto power off with disable\

Applications

HVAC system installation and maintenance
Cleanrooms
Kitchen exhaust systems
Wind power monitoring
Construction
Sailing/boating
Vehicle aerodynamics

Triplett DPR400-NIST Specifications

Manometer Range (Resolution)	0.7252psi (0.0001psi) 50mbar (0.01mbar) 20.07"H2O (0.01"H2O) 509.8 mmH2O (0.1 mmH2O) 5000Pa (1Pa)
Manometer Accuracy	±0.3% FS0
Maximum Pressure	10psi
Air Velocity Range (Resolution)	200 to 15733'/min (1'/min) 1 to 80 m/s (0.01 m/s) 3.6 to 288 km/h (0.1km/h) 2.24 to 178.66 mph (0.01 mph) 2 to 154.6 knots (0.1 knots)
Air Velocity Accuracy	±2.5%
Air Flow Range (Resolution)	0 to 99.999 CFM (0.0001 CFM) 0 to 99.999 CMM (0.001 CMM)
Air Temperature Range	32 to 122°F (0 to 50°C) (0.1°F/°C)
Air Temperature Accuracy	±2°F/1°C
PC Interface	USB
Data Acquisition	Real-Time data viewed on your PC
Power	9V battery
Meter Dimensions	8 x 3 x 2" (203 x 75 x 50 mm)
Meter Weight	10.6 oz (300 g)
Pitot Tube Dimensions	13 x 8" (329 x 201 mm)
Pitot Tube Diameter	0.3" (8 mm)
Pitot Tube Weight	5.3 oz (150 g)

What's included with the Triplett DPR400-NIST

Anemometer
Traceable Calibration Certificate with full Data and Uncertainties
Pitot Tube
2 x 33.5" (850 mm) Connection Hoses
Carrying Case
9V Battery
Software
Two-Year Warranty
