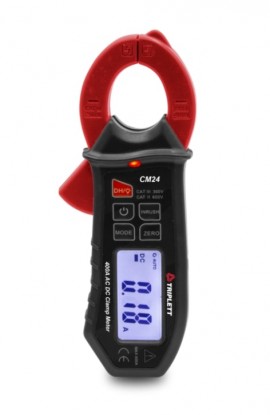

The TRMS mini clamp meter with NIST certificate features Inrush and backlit LCD with 4000 count measurement readings. It can measure up to 400 A AC and DC current with better accuracy non-sinusoidal or noisy waveforms measurements. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
The TRMS mini clamp meter with NIST certificate features Inrush and backlit LCD with 4000 count measurement readings. It can measure up to 400 A AC and DC current with better accuracy non-sinusoidal or noisy waveforms measurements. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
The TRMS miniature clamp meter has the ability to capture Inrush or the instantaneous surge current when the power equipment is first turned on. It measures up to 400 A AC/DC while clamping around a single conductor not needing to break the circuit. Using a clamp meter allows you to save time while avoiding damage to the circuit compared to the typical multimeters.
Features
| AC Current 50 to 60 Hz | 40.00 A ±(2.5% + 10d) 400.0 A ±(2.8% + 8d) |
| AC Current 50 to 400 Hz | 40.00 A ±(2.5% + 10d) 400.0 A ±(2.8% + 8d) |
| DC Current | 40.00 A ±(2.5% + 10d) 400.0 A ±(2.8% + 8d) |
| NCV Detector Range | 0 to 600 VAC |
| Power | AAA batteries (2) |
| Safety Category | CAT III 300V |
| Dimensions | 6 x 2.4 x 1.1"” (152 x 60 x 28 mm) |
| Weight | 0.3 lb (134g) |
| AC Current 50 to 60 Hz | 40.00 A ±(2.5% + 10d) 400.0 A ±(2.8% + 8d) |
| AC Current 50 to 400 Hz | 40.00 A ±(2.5% + 10d) 400.0 A ±(2.8% + 8d) |
| DC Current | 40.00 A ±(2.5% + 10d) 400.0 A ±(2.8% + 8d) |
| NCV Detector Range | 0 to 600 VAC |
| Power | AAA batteries (2) |
| Safety Category | CAT III 300V |
| Dimensions | 6 x 2.4 x 1.1"” (152 x 60 x 28 mm) |
| Weight | 0.3 lb (134g) |
