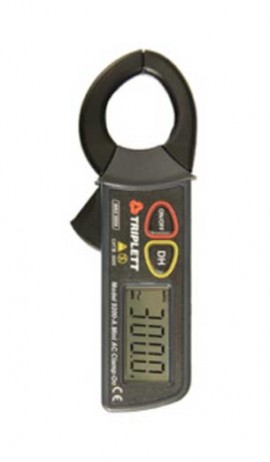

Triplett 9200-A Mini AC Clamp-On Meter, 0 to 300 A

Model: 9200-A | Order No: 9200 | UPC: 614395001025

Be the first to review this product

Triplett 9200-A Mini AC Clamp-On Meter, 0 to 300 A-

Downloads: datasheet manual

More Triplett Products

Ask an Expert

Triplett 9200-A Mini AC Clamp-On Meter, 0 to 300 A

Model: 9200-A | Order No: 9200 | UPC: 614395001025

Be the first to review this product

Use this meter to test the AC current of your electrical components. The meter is capable of handling up to 300 A.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

$Triplett 9200B Miniature AC Clamp-On Meter, 3&frac34; digit 4000 count, 300 A-$

Triplett 9200B Miniature AC Clamp-On Meter, 3¾ digit 4000 count, 300 A

Model: 9200B

Measures 300 A true RMS AC, this miniature AC clamp-on meter has a built-in non-contact AC voltage tester and provides resistance to damage from transient overvoltages. In addition, it is ideal for commercial and residential applications and features a data hold function.

Learn More

Triplett 9200-A Offers

Capable of handling up to 300 A AC, this TRIPLETT 9200-A Mini AC Clamp-On Meter makes it easy to test the current of your equipment. The overload protection helps shield against transient overvoltages in demanding settings.

Features

Designed for measuring AC current with your electrical equipment
Capable of measuring up to 300 A
Large, backlit display shows results
Offers data hold function
Cat III design provides overload protection when used with demanding applications
Double-insulated design
Case is built to absorb shocks if it's accidentally dropped
Low-battery indicator keeps you aware of the power status

Triplett 9200-A Specifications

Current	0 to 300 A AC
Display	4,000-count backlit
Power Supply	3 V battery
Other Function	Auto power off, data hold
Overload Protection	Cat I/II/III to 300 VAC/VDC
Product Length	6.75" (17.15 cm)
Product Width	0.75" (1.91 cm)
Product Height	2" (5.08 cm)
Product Weight	4 oz (113.4 g)
Manufacturer Warranty	3-year limited

Click here for complete specifications on the Triplett 9200-A

What's included with the Triplett 9200-A

Mini AC Clamp-On Meter
3 V Battery
Carrying Case
Owner's Manual

datasheet for the Triplett 9200-A Mini AC Clamp-On Meter, 0 to 300 A manual for the Triplett 9200-A Mini AC Clamp-On Meter, 0 to 300 A

Ask a question about Triplett 9200-A Mini AC Clamp-On Meter, 0 to 300 A

Customer Reviews for the Triplett 9200-A

Description ➕➖

Triplett 9200-A Offers

Features

Designed for measuring AC current with your electrical equipment
Capable of measuring up to 300 A
Large, backlit display shows results
Offers data hold function
Cat III design provides overload protection when used with demanding applications
Double-insulated design
Case is built to absorb shocks if it's accidentally dropped
Low-battery indicator keeps you aware of the power status

Specifications ➕➖

Triplett 9200-A Specifications

Current	0 to 300 A AC
Display	4,000-count backlit
Power Supply	3 V battery
Other Function	Auto power off, data hold
Overload Protection	Cat I/II/III to 300 VAC/VDC
Product Length	6.75" (17.15 cm)
Product Width	0.75" (1.91 cm)
Product Height	2" (5.08 cm)
Product Weight	4 oz (113.4 g)
Manufacturer Warranty	3-year limited
