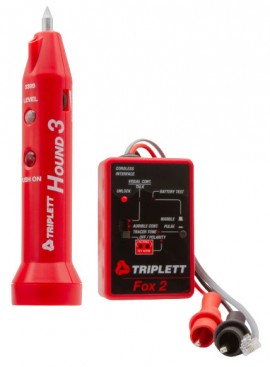

Trace electrical wire, mini-conductor cable, and more with this premium tone and inductive amplifier probe kit. Lightweight and easy-to-use, this kit comes complete with the Fox 2 deluxe tone generator, the Hound 3 probe inductive tracer, as well as adapters, earphones, and a safe non-shortening duckbill.
Trace electrical wire, mini-conductor cable, and more with this premium tone and inductive amplifier probe kit. Lightweight and easy-to-use, this kit comes complete with the Fox 2 deluxe tone generator, the Hound 3 probe inductive tracer, as well as adapters, earphones, and a safe non-shortening duckbill.
Features
Fox 2 Tone Generator Features
Hound 3 Inductive Tracer Features
Applications
| Fox 2 | |
| Operating Frequency | RF: 400 to 500 kHz AF: 800 to 2400 Hz |
| Output Voltage | RF: Adjustable 5 to 30 vpp (open circuit) AF: Fixed 10 vpp (open circuit) |
| Tracer Tone | Warble or pulsed, high or low pitch |
| Maximum AC/DC Live Voltage | 250 V |
| Continuity Test | Up to 5000 ohms with audible beeper |
| Voltage Test | AC: 30 to 250 VAC DC: Positive applied to red test lead 40 to 250 VDC |
| Dimensions | 3.5 x 4.5 x 1.5" (8.89 x 11.43 x 3.81 cm) |
| Weight | 7 oz (0.19 kg) |
| Hound 3 | |
| Operating Frequency (RF) | 400 to 500 kHz |
| Signal Indicators | Speaker outputs tracer signal and LED indicates signal strength |
| Earphone Jack | Accepts ⅛" mono or stereo earphone plug (mutes speaker) |
| Headlights | 2 high brightness white LEDs |
| Speaker | 1.5" Mylar cone with Alnico magnet |
| Dimentions | 1-⅞" diameter at speaker; 1-⅜" diameter at body; 7.5" long |
| Weight | 9 oz (0.25 kg) |
| Fox 2 | |
| Operating Frequency | RF: 400 to 500 kHz AF: 800 to 2400 Hz |
| Output Voltage | RF: Adjustable 5 to 30 vpp (open circuit) AF: Fixed 10 vpp (open circuit) |
| Tracer Tone | Warble or pulsed, high or low pitch |
| Maximum AC/DC Live Voltage | 250 V |
| Continuity Test | Up to 5000 ohms with audible beeper |
| Voltage Test | AC: 30 to 250 VAC DC: Positive applied to red test lead 40 to 250 VDC |
| Dimensions | 3.5 x 4.5 x 1.5" (8.89 x 11.43 x 3.81 cm) |
| Weight | 7 oz (0.19 kg) |
| Hound 3 | |
| Operating Frequency (RF) | 400 to 500 kHz |
| Signal Indicators | Speaker outputs tracer signal and LED indicates signal strength |
| Earphone Jack | Accepts ⅛" mono or stereo earphone plug (mutes speaker) |
| Headlights | 2 high brightness white LEDs |
| Speaker | 1.5" Mylar cone with Alnico magnet |
| Dimentions | 1-⅞" diameter at speaker; 1-⅜" diameter at body; 7.5" long |
| Weight | 9 oz (0.25 kg) |
