Hook up this probe adapter to your compatible digital multimeter, oscilloscope or clamp-on tester to measure your electrical current. The adapter offers an AC range of up to 1,600A and a DC range of up to 2,000A.
Hook up this probe adapter to your compatible digital multimeter, oscilloscope or clamp-on tester to measure your electrical current. The adapter offers an AC range of up to 1,600A and a DC range of up to 2,000A.

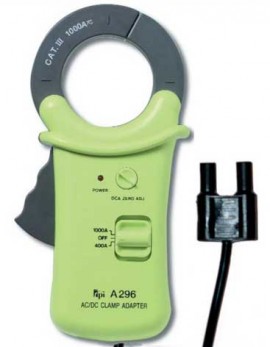

With an AC range of up to 1,600 A and a DC range of up to 2,000 A, this TPI A296 AC/DC Amp Current Probe Adapter is built to measure your electrical current. The adapter can be used with select digital multimeters, oscilloscopes and clamp-on testers, while the 4' (1.2 m) lead allows flexible placement options.
Features
| AC Range | 0 to 1,600 A |
| DC Range | 0 to 2,000 A |
| Accuracy | ±1% of reading (0 to 400 A), ±1.5% of reading (0 to 2,000 A) |
| Output | 1 mA per 1 A |
| Maximum Conductor Size | 1.34" (34 mm) |
| Lead Length | 4' (1.2 m) |
| Output Connection Type | Dual banana plug |
| RoHS Compliant | Yes |
| Compatibility | Most digital multimeters, clamp-ons and handheld oscilloscopes |
| AC Range | 0 to 1,600 A |
| DC Range | 0 to 2,000 A |
| Accuracy | ±1% of reading (0 to 400 A), ±1.5% of reading (0 to 2,000 A) |
| Output | 1 mA per 1 A |
| Maximum Conductor Size | 1.34" (34 mm) |
| Lead Length | 4' (1.2 m) |
| Output Connection Type | Dual banana plug |
| RoHS Compliant | Yes |
| Compatibility | Most digital multimeters, clamp-ons and handheld oscilloscopes |
