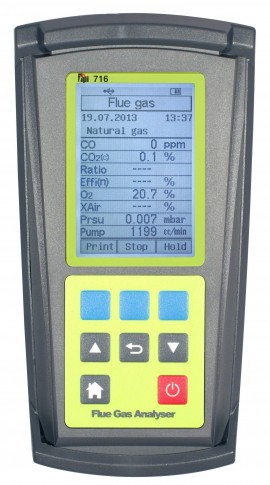

TPI 716NA740 716N Combustion Analyzer and IR Printer-

Downloads: datasheet manual

More TPI Products

Ask an Expert

TPI 716NA740 716N Combustion Analyzer and IR Printer

Model: 716NA740 | UPC: 637623037160

Be the first to review this product

This flue gas analyzer is a state of the art, easy to use analyzer designed not only to display and calculate the required readings from a flue but also to cover most of the other measurements associated with combustion.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

TPI DC711N Combustion Efficiency Analyzer with NO sensor

Model: DC711N

A versatile and advanced combustion efficiency analyzer designed for both residential and commercial applications. Can operate as a standalone unit or be controlled remotely via the TPI View App on smart devices.

Learn More

TPI 716NA740 Offers

Features quick and simple set up, with fast purge and the ability to perform fuel selection during start up enable tests to be performed quickly without requiring extra set-up time after initial startup. It also uses the last selected fuel as the default setting. This feature prevents the need to perform fuel selection every time the analyzer is turned on.

Features

Built-in differential manometer with 0.001" H2O resolution
Measure NO (Nitric Oxide), calculate NOx
Calculates combustion efficiency
Data Logging with time and date stamp
Will not shut off if 15 ppm CO is present for increased safety
Communicate to a PC via the USB interface
Includes A740 IR printer for hard copies of test results
Built-in differential thermometer
Store function to save up to 10 readings
Push on fittings for fast and easy use
Large easy to read backlit display
Ten selectable fuels

Applications

Use to test flue gases in gas and oil fired equipment including high efficiency furnaces and condensing boilers. Measure CO, O2, and stack temperature.

TPI 716NA740 Specifications

Operating Temperature Range	14 to 122°F (-10℃ to 50℃)
Battery	Type: Rechargeable NiMH Life: >6 hours
Charger Input Voltage	115V or 230V: 50/60Hz AC
Fuels	Natural gas, LPG, Light oil, heavy oil, bituminous coal, anthracite coal, coke, butane, wood, bagasse
Units of Pressure	mbar, kPa, inH20
Display	8 line graphical LCD backlit
Data Storage	100 sets of readings
Data Logging	400 sets of readings
Single Logging	150 sets of readings
Time and Date	24 hour real time clock

Click here for complete specifications on the TPI 716NA740

What's included with the TPI 716NA740

Analyzer
Combustible Gase Leak Probe
Flue Probe
Temperature Probe
Pressure Tubing
2 x Static Pressure Tips
2 x 1/4" Barbed to 1/8" NPT Fitting
Gas Valve Adapter
Adapter Tubing
IR Printer
Instruction Manual
Soft Carrying Case
