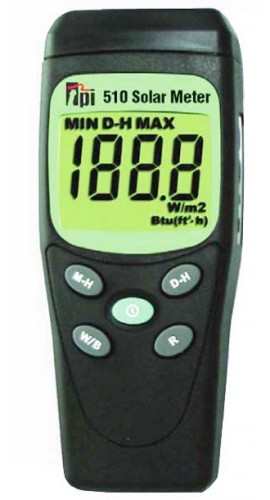

TPI 510 Solar Irradiance Meter, 0 to 1,000W/m² (0 to 634BTU)

Model: 510 | UPC: 637623005107

Measure light sources with this irradiance meter. The meter can be used to find the ideal angle for installing solar panels.

Measure light sources with this irradiance meter. The meter can be used to find the ideal angle for installing solar panels.

Sale Price $134.96 USD
Regular Price $149.95 USD
Availability 4 to 5 Weeks
Quantity

TPI 510 Offers

This easy-to-use TPI 510 Solar Irradiance Meter can accurately measure light sources, including visible light. The meter delivers readings in W/m2 or BTU, so you can check the intensity of light through windows, your vehicle's headlights and monitor the effectiveness of window tint. The meter is also effective in finding the ideal angle of inclination to install solar panels.

Features

  • Measures solar power in W/m2 or BTU to help you find the optimal incline angle to install solar panels
  • Can also be used to gauge light intensity through windows to determine the effectiveness of solar film or window tint
  • Capable of measuring solar radiation, as well as all measurable light sources, including visible light
  • Features minimum, maximum and data hold functions for ease of use
  • LCD shows 3.5 digits with a maximum value of 1999
  • OL overload display shows when the measurement is out of range
  • UL-listed and RoHS- and CE-compliant design

Applications

  • Solar Panel Installation, Light Intensity Measurement Applications and Window Tint Measurement

TPI 510 Specifications

Irradiance Range 0 to 1999 W/m2 (0 to 634 BTU)
Accuracy ±10 W/m2 or ±3 BTU, ±5% (whichever is greater in sunlight)
Display 3.5-digit LCD
Sampling Time 0.25 seconds (approximately)
Resolution 0.1 W/m2 (0.1 BTU)
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Relative Humidity Less than 80% (operating), less than 70% (storage)
RoHS Compliant Yes
UL Listed Yes
CE Compliant Yes
Product Length 1.5" (38 mm)
Product Width 2.4" (60.96 mm)
Product Height 5.1" (129.54 mm)
Product Weight 5.3 oz (150.25 g)
Click here for complete specifications on the TPI 510

What's included with the TPI 510

  • TPI 510 Solar Irradiance Meter, 0 to 1,000W/m² (0 to 634BTU)

TPI Model 510 Solar Meter
