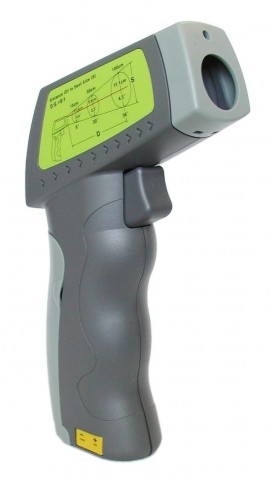

TPI 381A Non-Contact/Contact IR Thermometer, -4° to 572°F, 9:1 distance to spot ratio

Model: 381A | UPC: 637623003813

TPI 381A Non-Contact/Contact IR Thermometer, -4° to 572°F, 9:1 distance to spot ratio-

Downloads: datasheet manual

More TPI Products

Ask an Expert

TPI 381A Non-Contact/Contact IR Thermometer, -4° to 572°F, 9:1 distance to spot ratio

Model: 381A | UPC: 637623003813

Featuring a non-contact and contact temperature tester with laser sighting to confirm your target. It uses K-type thermocouples with sub-mini connector for contact measurements.

Featuring a non-contact and contact temperature tester with laser sighting to confirm your target. It uses K-type thermocouples with sub-mini connector for contact measurements.

Sale Price $67.46 USD
Regular Price $74.95 USD
Availability 4 to 5 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 381A Non-Contact/Contact IR Thermometer

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 381A Non-Contact/Contact IR Thermometer

TPI 381A Offers

Features

  • Use standard K-type thermocouple probes with sub mini input jack
  • Measure hard-to-reach, sensitive, or large moving target areas
  • Temperature compensated
  • Easy-to-use one button operation you can't lock up chip by pressing multiple buttons at one time and therefore don't have to disconnect the battery to reboot the chip.
  • °C and °F selectable
  • 9 to 1 D:S

Applications

  • HVAC/R - compressor heads, vents, hot and cold areas in insulation, leaks around cooler or freezer doors, leaks around windows, steam traps and registers
  • Electrical - cables, circuit breakers, connections, machinery, motors and transformers
  • Food - grill and surface temperatures, holding cabinets, serving temperatures and storage temperatures

TPI 381A Specifications

Distance to Spot Ratio 9 : 1
Temperature Range Non-contact: -4 to 572°F (-20 to 300°C)
Contact: -148 to 2192°F (-100 to 1200°C)
IR Accuracy @ 23°C and 0.95 Emissivity ±5°F (3°C) below 32°F (0°C)±2% of rdg or ±3.5°F (2°C)whichever is greater at >32°F (0°C)
Contact Accuracy +(0.5% of reading + 3.5°F (2°C)
Emissivity 0.95
Laser Sighting Output <1mW, Wavelength 645 to 660nm, Class II Laser
°F or °C Selectable (slide switch in handle)
Contact or Non-contact Selectable (slide switch in handle)
Display Hold Yes
Response Time 500 millisecond
Spectral Response 7 to 14 um
Operating Temperature 32 to 120°F (0 to 50°C)
Battery 9 V
Click here for complete specifications on the TPI 381A

What's included with the TPI 381A

  • Non-Contact/Contact IR Thermometer
  • 9 V Alkaline Battery
  • Soft Pouch
  • General Purpose Fiberglass Insulated Beaded Tip Probe

TPI 381F Infrared Thermometer: Overview


This video will serve as an overview of this infrared thermometer's main features. Additionally, it is very easy to switch between settings.
datasheet for the TPI 381A Non-Contact/Contact IR Thermometer, -4° to 572°F, 9:1 distance to spot ratio manual for the TPI 381A Non-Contact/Contact IR Thermometer, -4° to 572°F, 9:1 distance to spot ratio
