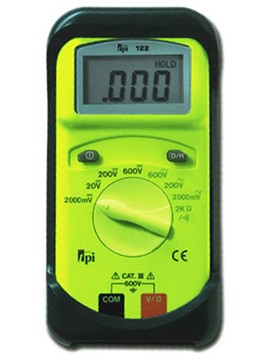

Capable of freezing the reading on the LCD display with the DATA-H button, is extremely useful when measuring in locations that are difficult to read.
Capable of freezing the reading on the LCD display with the DATA-H button, is extremely useful when measuring in locations that are difficult to read.
Features
Applications
HVAC/R
Electrical
| DC Volts | Maximum Input: 600V
Maximum Resolution: 1mV Accuracy: ±0.5% |
| AC Volts | Maximum Input: 600V
Maximum Resolution: 1mV Accuracy: ±1.2% |
| Resistance (Ohms) | Maximum Input: 2KΩ
Maximum Resolution: 0.001Ω Accuracy: ±0.5% |
| Continuity | Audible at less than 100Ω |
| Data Hold | Yes |
| Protective Boot | Yes (standard) |
| Display Type | 2000 count LCD |
| Range Selection | Manual |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Humidity | 80% non-condensing |
| Size | 6" x 3.1" x 1.2" (187mm x 86mm x 33mm) with boot |
| Weight | 12oz (340g) with boot |
| Battery Type | 9V Alkaline (NEDA 1604) |
| Battery Life | 500hrs Typical |
| OverInput Category | CAT III 600V |
| Agency Approval | IEC 61010-1 |
| Warranty | 3 Years |
Click on a category to view a selection of compatible accessories with the TPI 122 Compact Digital Multimeter with Adapter Range for Optional Accessories.
| DC Volts | Maximum Input: 600V
Maximum Resolution: 1mV Accuracy: ±0.5% |
| AC Volts | Maximum Input: 600V
Maximum Resolution: 1mV Accuracy: ±1.2% |
| Resistance (Ohms) | Maximum Input: 2KΩ
Maximum Resolution: 0.001Ω Accuracy: ±0.5% |
| Continuity | Audible at less than 100Ω |
| Data Hold | Yes |
| Protective Boot | Yes (standard) |
| Display Type | 2000 count LCD |
| Range Selection | Manual |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Humidity | 80% non-condensing |
| Size | 6" x 3.1" x 1.2" (187mm x 86mm x 33mm) with boot |
| Weight | 12oz (340g) with boot |
| Battery Type | 9V Alkaline (NEDA 1604) |
| Battery Life | 500hrs Typical |
| OverInput Category | CAT III 600V |
| Agency Approval | IEC 61010-1 |
| Warranty | 3 Years |
Click on a category to view a selection of compatible accessories with the TPI 122 Compact Digital Multimeter with Adapter Range for Optional Accessories.
