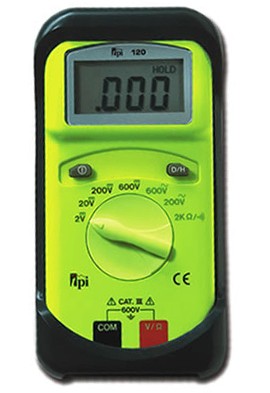

TPI 120 Compact Digital Multimeter with Manual Ranging-

Downloads: datasheet manual

More TPI Products

Ask an Expert

TPI 120 Compact Digital Multimeter with Manual Ranging

Model: 120 | UPC: 637623001208

Be the first to review this product

Capable of freezing the reading on the LCD display with the DATA-H button, is extremely useful when measuring in locations that are difficult to read.

Sale Price	$29.66 USD
Regular Price	$32.95 USD
Availability	4 to 5 Weeks5 to 6 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 120 Compact Digital Multimeter with Manual Ranging

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Traceable Calibration Certificate for your 120 Compact Digital Multimeter with Manual Ranging

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Recommended Accessories

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters

A771

TPI 120 Offers

Features

Safety meets CE and IEC 1010 requirements, UL Listed
Large LCD is easy to read at all angles and the majority of lighting levels
Freeze readings on the display
cULus 61010-1
CAT II – 1000V, CAT III – 600V
0 to 600 volts AC and DC
0 to 2,000 ohms
Audible continuity
10 MOHM internal impedance
0.5 % DCV basic accuracy

Applications

HVAC/R

Line voltage
Control circuit voltage
Heating element resistance (continuity)
Compressor winding resistance
Contractor and relay coil resistance
Continuity of wiring

Electrical

Measure line voltage
Continuity of circuit breakers
Voltage of direct drive DC motors

TPI 120 Specifications

DC Volts	Maximum Input: 600V (Minimum Input = 1.5V) Maximum Resolution: 0.001V Accuracy: ±0.5%
AC Volts	Maximum Input: 600V (Minimum Input = 1.7V) Maximum Resolution: 0.1V Accuracy: ±0.8%
Resistance (Ohms)	Maximum Input: 2KΩ Maximum Resolution: 0.001Ω Accuracy: ±0.5%
Continuity	Audible at less than 100Ω
Data Hold	Yes
Protective Boot	Yes (standard)
Display Type	2000 count LCD
Range Selection	Manual
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 122°F (-10 to 50°C)
Humidity	80% non-condensing
Size	6" x 3.1" x 1.2" (187mm x 86mm x 33mm) with boot
Weight	12oz (340g) with boot
Battery Type	9V Alkaline (NEDA 1604)
Battery Life	500hrs Typical
OverInput Category	CAT III 600V
Agency Approval	IEC 61010-1
Warranty	3 Years

Click here for complete specifications on the TPI 120

What's Included with the TPI 120

TPI 120 Digital Multimeter
Rubber Boot
Test Lead Set
9 Volt Battery
Instruction Manual

TPI 120 Compact Digital Multimeter: Overview

This video will provide the viewer with a closer look into the main features of this compact digital multimeter. Additionally, this tool is capable of freezing the reading on the LCD with the DATA-H button.

datasheet for the TPI 120 Compact Digital Multimeter with Manual Ranging manual for the TPI 120 Compact Digital Multimeter with Manual Ranging

Click on a category to view a selection of compatible accessories with the TPI 120 Compact Digital Multimeter with Manual Ranging.

Adapter

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters A771

Use alongside your DMM and measure the atmospheres air CO.
