A Leading Innovator in State-of-the-Art Measuring Technology
A Leading Innovator in State-of-the-Art Measuring Technology
Combustion analyzer for residential and commercial combustion system analysis. Assures correct combustion efficiency and CO safety analysis the first time and every time. Includes probes and filters.
Combustion analyzer for residential and commercial combustion system analysis. Assures correct combustion efficiency and CO safety analysis the first time and every time. Includes probes and filters.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

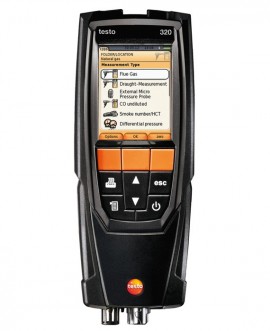

Offering a comprehensive combustion system analysis, this analyzer is designed for the job site and for the contractor who expects more. Use this for basic testing and tuning of all types of boilers, heaters or furnaces and also to set up and commission more complex multi-stage or modulating heating systems, for accurate combustion efficiency analysis.
Innovative features like the flue gas matrix will graphically display the combustion characteristics, which is an easy way to show if the heating system is running efficiently. Additionally, this analyzer makes the job easier by displaying from two to eight user-defined parameters simultaneously. Eliminates the guess work and provides accurate combustion system analysis.
Measures
Applications
Use for the testing and tuning of:
Download the App
| Temperature | |
| Measuring Range | -40 to 2192°F (-40 to 1200°C) |
| Accuracy | ±0.5°F (32 to 212°F) Remaining Range: ±0.5% of m.v. |
| Resolution | 0.1°F (-40 to 1831.8°F) (0.1°C [-40 to 999.9°C]) 1.0 °F (>1832°F) (1°C (>1000°C) |
| General Specifications | |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| Operating Temperature | 23 to 113°F (-5 to 45°C) |
| Maximum | 500 Measurement Values |
| Display | Color graphic display with 240 x 320 pixels |
| Dimensions | 9 x 3 x 3" (240 x 85 x 65 mm) |
| Weight | 20 oz (573 g) |
| Temperature | |
| Measuring Range | -40 to 2192°F (-40 to 1200°C) |
| Accuracy | ±0.5°F (32 to 212°F) Remaining Range: ±0.5% of m.v. |
| Resolution | 0.1°F (-40 to 1831.8°F) (0.1°C [-40 to 999.9°C]) 1.0 °F (>1832°F) (1°C (>1000°C) |
| General Specifications | |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| Operating Temperature | 23 to 113°F (-5 to 45°C) |
| Maximum | 500 Measurement Values |
| Display | Color graphic display with 240 x 320 pixels |
| Dimensions | 9 x 3 x 3" (240 x 85 x 65 mm) |
| Weight | 20 oz (573 g) |
