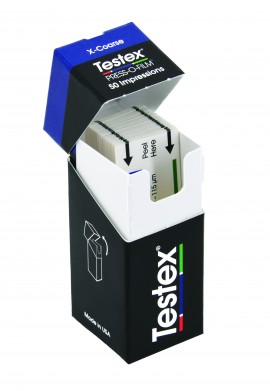

Testex XC-TAPE Replica Tape, X-Coarse

Model: X-COARSE | Order No: XC-TAPE

Testex XC-TAPE Replica Tape, X-Coarse

Model: X-COARSE | Order No: XC-TAPE

Consists of a layer of crushable plastic microfoam coated onto polyester film of highly uniform thickness. Available in a number of grades to accommodate measurements in different profile ranges.

Consists of a layer of crushable plastic microfoam coated onto polyester film of highly uniform thickness. Available in a number of grades to accommodate measurements in different profile ranges.

Your Price $34.50 USD
Availability 51 in Stock
Quantity

Testex XC-TAPE Offers

Features

  • All grades are coated onto a tough polyester substrate 2.0 mils (50 µm) in thickness
  • Foam thichness: 5.0+ mils/128+ µm
  • Gauge Range 1.5 to 4.5 mils/35 to 115 µm
  • When compressed by burnishing, the foam acquires an impression of the surface against which it is burnished
  • The thickness of the compressed tape equals the average maximum peak-to-valley profile plus the thickness of the incompressible polyester substrate
  • A spring-loaded micrometer gauge is used to measure the thickness of the replica
  • Each roll contains sufficient replica tape for 50 readings

What's included with the Testex X-COARSE

  • Testex XC-TAPE Replica Tape, X-Coarse
  • Customer Reviews for the Testex X-COARSE

    Ask a question about Testex XC-TAPE Replica Tape, X-Coarse

    Testex XC-TAPE Offers

    Features

    • All grades are coated onto a tough polyester substrate 2.0 mils (50 µm) in thickness
    • Foam thichness: 5.0+ mils/128+ µm
    • Gauge Range 1.5 to 4.5 mils/35 to 115 µm
    • When compressed by burnishing, the foam acquires an impression of the surface against which it is burnished
    • The thickness of the compressed tape equals the average maximum peak-to-valley profile plus the thickness of the incompressible polyester substrate
    • A spring-loaded micrometer gauge is used to measure the thickness of the replica
    • Each roll contains sufficient replica tape for 50 readings
