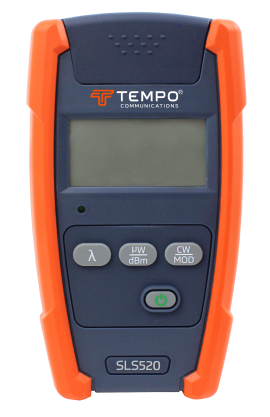

Designed for accurate insertion loss measurements, this dual wavelength laser source operates at 1310 and 1550 nm for singlemode networks. Moreover, it supports tone and probe testing with compatible optical power meters, enabling fast and reliable fiber identification in the field.
Designed for accurate insertion loss measurements, this dual wavelength laser source operates at 1310 and 1550 nm for singlemode networks. Moreover, it supports tone and probe testing with compatible optical power meters, enabling fast and reliable fiber identification in the field.
The ruggedized IP54 compliant package provides test confidence when testing singlemode and multimode networks. See Models tab for options as well as Adapters and Accessories.
Features
| Wavelength | 1310/1550 nm |
| Range of Use | Singlemode |
| Emitter Type | FP |
| Spectral Width | SLS520: =/less than 5nm |
| Output Power | SLS520: =/greater than 0 dBm/-1 dBm |
| MOD Frequency | 270, 1kHz, 2kHz |
| Display | LCD |
| Battery Life | >20 hours (Typical) |
| Connector Type | SC/PC (Interchangeable LC,ST, FC) |
| Power Supply | 9 V 1000mAh Lithium battery/ 9 V AC adapter |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Relative Humidity | 0 to 95% (non-condensing) |
| IP Rating | IP54 |
| Vibration | 5 to 150 Hz Amplitude = 0.15 mm |
| Shock | Peak acceleration 25g at a pulse duration of 6ms |
| Compliance | CE, FCC, 21 CFR 1040.10 (Laser) |
| Dimensions | 6.1 × 3.5 × 1.3" (155 × 89 × 33 mm) |
| Weight | 0.71 lbs (300 g) |
Click on a category to view a selection of compatible accessories with the Tempo SLS520 Dual Wavelength Laser Source, singlemode, 1310 and 1550 nm.
