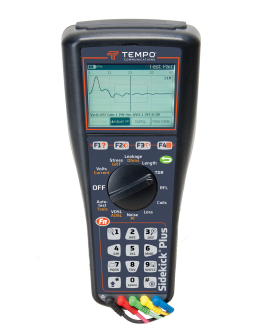

Tempo 1155-5012 Sidekick Plus Modem, Wideband & Bonded, LCC

Model: 1155-5012 | UPC: 783310041979

Tempo 1155-5012 Sidekick Plus Modem, Wideband & Bonded, LCC

Model: 1155-5012 | UPC: 783310041979

The 1155-5012 Sidekick Plus Pair Bonded Modem Test Set helps technicians diagnose and troubleshoot problems with twisted pair cable. Easily install, qualify, and maintain DSL services. The Broadcom bonded and single ADSL/VDSL vectoring modem enables rapid installation without reboots.

Your Price	$5056.04 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Tempo Communications 1155-5012 Offers

Features

Saves time. Easy-to-use mode selection dial and operation - minimizes training needs and saves time on the job.
Versatile. Combines your copper qualification needs with DSL sync and service testing in one test set.
Fully loaded. The Sidekick® Plus xDSL comes complete with all you need to perform tests on the copper networks that support DSL services.
No modules needed – Advanced cable diagnosis and troubleshooting in a single test set
Advanced Dual Trace Pulse TDR (Zero Dead Zone)
Resistive Fault Locator (Detects up to 20MΩ)
1GΩ Leakage Test (Insulation Resistance)
Longitudinal Balance Test
Ground Resistance Test
Quite Line Noise (QLN) Test
Stress Test
AC/DC Voltage
Resistance
Open Meter
Loop Current
Circuit Loss
Tracing Tone Generator
Reference Tone

Tempo Communications 1155-5012 Specifications

AC Voltage	250V
Application	Install, qualify, and troubleshoot bonded xDSL networks
Circuit Loss	-70 to +3dBm
Circuit Noise	0 to 90 dBrnC
DC Voltage	300V
Dimensions	279 x 121 x 76 mm (11 x 4.75 x 3 in); 305 x 140 x 114 mm (12 x 5.5 x 4.5 in) (in soft case)
Leakage	1 GΩ at 150V
Length	0 to 5,000 nF (5 µF)
Loop Current	110 mA
Power	Li-ion battery
Power Influence	30 - 100 dBrnC (-60 to +20 dBm)
Replacement Part	Accessories - cordsets, carry case, PSU, in-vehicle charger 12 V lead
Resistance	100MΩ
Storage Operating Temperature	Operates at 0 to 120° F (-18 to 50°C)
Stress Test	0 to 82 dBrnC
Type	Telecommunications test equipment
Voltage Measurement	TNV-3
Weight	1.8 kg (4 lbs) (includes Li-ion battery pack, soft case, and test leads)
