Starrett DFC-20 Digital Force Controller, 100 N (20 lbf), 10,000:1

Model: DFC-20 | UPC: 049659731248

Featuring measurement accuracy of 0.1% full scale with internal data sampling at 25 kHz, the display resolution is 10,000:1, Bluetooth, USB, and RS-232 with digital I/O. Used as a high-accuracy handheld force gage or as a digital controller for digital force testers. It has a 100 N (20 lbf) load capacity.

Featuring measurement accuracy of 0.1% full scale with internal data sampling at 25 kHz, the display resolution is 10,000:1, Bluetooth, USB, and RS-232 with digital I/O. Used as a high-accuracy handheld force gage or as a digital controller for digital force testers. It has a 100 N (20 lbf) load capacity.

Your Price $1590.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your DFC-20 Digital Force Controller

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your DFC-20 Digital Force Controller

Recommended Accessories

Starrett SPK-FG-S Force Gauge Accessory Kit for DFC-10/20/50/100 and DFG-10/20/50/100-

Starrett SPK-FG-S Force Gauge Accessory Kit for DFC-10/20/50/100 and DFG-10/20/50/100

SPK-FG-S

Starrett DFC-20 Offers

The digital force controller can display information in multiple languages: English, Deutsch, Portugues, Spanish, French, Italian, Chinese and more.

Features

  • Exclusive "Machine Control" technology
  • Better than 0.1% accuracy
  • Display load in lbf, N, kgf, ozf and gf units
  • Tension or compression
  • Save results to memory for statistical calculations, or export to your PC for detailed analysis
  • Measure peak loads quickly
  • Use tolerances for pass-fail analysis
  • Bluetooth, USB, and RS232 communications
  • 25,000 Hz data sampling rate

Applications

  • Limit Testing
  • Load Average Testing
  • Time Average Testing
  • Cyclic Count Testing
  • Cyclic Duration Testing
  • Constant Hold Testing

Starrett DFC-20 Specifications

Capacity 100 N, 10 kfg, 20 lbf
Resolution 10,000:1
Measurement Accuracy (% Full Scale) +/-0.1%
Safe Overload 200%
Thread Size M6x1-6g
Maximum Tare 10%
Operating Temperature 40 to 110°F (4 to 43°C)
Digital I/O 2 channels
Max Memory 99 Test Results
Battery Type Lithium Ion
Click here for complete specifications on the Starrett DFC-20

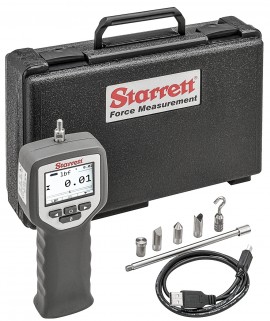

What's included with the Starrett DFC-20

  • Digital Force Controller
  • NIST-Traceable Certificate of Calibration
  • Hook Adapter
  • Notch Adapter
  • Chisel Adapter
  • Flat Adapter
  • Point Adapter
  • Extension Rod (6")
  • USB Cable
  • Carrying Case
  • User Manual
datasheet for the Starrett DFC-20 Digital Force Controller, 100 N (20 lbf), 10,000:1 manual for the Starrett DFC-20 Digital Force Controller, 100 N (20 lbf), 10,000:1

Click on a category to view a selection of compatible accessories with the Starrett DFC-20 Digital Force Controller, 100 N (20 lbf), 10,000:1.

Starrett SPK-FG-S Force Gauge Accessory Kit for DFC-10/20/50/100 and DFG-10/20/50/100 SPK-FG-S
The force gauge accessory kit for DFC-10/20/50/100 and DFG-10/20/50/100 is made from stainless steel.



Ask a question about Starrett DFC-20 Digital Force Controller, 100 N (20 lbf), 10,000:1
