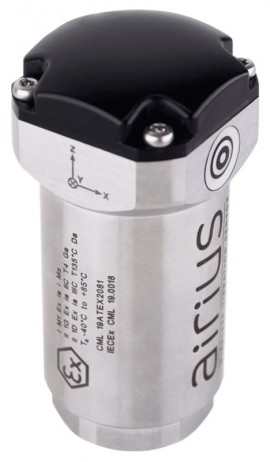

SPM Airius Ex Wireless Vibration Sensor, 10 to 1000 Hz

Model: AIR01-01-EX

Be the first to review this product

SPM Airius Ex Wireless Vibration Sensor, 10 to 1000 Hz-

Downloads: datasheet manual

More SPM Products

Ask an Expert

SPM Airius Ex Wireless Vibration Sensor, 10 to 1000 Hz

Model: AIR01-01-EX

Be the first to review this product

Enables wireless condition monitoring in potentially explosive atmospheres, this battery-powered sensor performs a user-defined number of vibration measurements per day in a 10 to 1000 Hz frequency range. In addition, this sensor measures acceleration in three directions, temperature, and offers remote communication.

Sale Price	$932.40 USD
Regular Price	$1008.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

SPM AIR01-01-EX Offers

Features

Enables wireless condition monitoring in a potentially explosive atmosphere, measures acceleration in three directions, and temperature
Remote communication with Wi-Fi and Bluetooth
An external push button and three RGB LEDs are local user interfaces
The enclosure consists of a metal body and an ESD-protected plastic lid
The lid is removable for battery replacement
Compatible with both Condmaster.NET, the application providing easy access to measurement data through a user-friendly interface, and the analysis and diagnostic software Condmaster Ruby
The SPM Connect app, downloadable for mobile devices, is used to configure the parameters required for connection to Condmaster Entity Server (CES) or SPM Cloud
Battery-powered

Applications

Condition monitoring

SPM AIR01-01-EX Specifications

Frequency Range	10 to 1000 Hz
Spectrum Lines	800/1600 lines
Readings	RMS, peak, peak-to-peak, crest, kurt, skew, temperature
Acceleration Measurement	Range, resolution, bandwidth, resolution
Temperature Measurement	Range: -40 to 185°F (-40 to 85°C) Resolution: 0.1°C Accuracy: ±2°C
Ambient Temperatures	Operational: -4 to 185°F (-20 to 85°C) Ex safety: -40 to 185°F (-40 to 85°C) Storage: -40 to 185°F (-40 to 85°C)
Relative Humidity	0 to 100% (non-condensing)
Protection Class	IP69
Approvals/Certificates	CE, ATEX, IECEX, UKEX, FCC, Canadian RSS, China MIIT, Japan MIC, Korean CRM, Taiwan NCC, WiFi Alliance, Bluetooth SIG
Enclosure	Stainless steel body, acid proof; plastic lid, ESD protected
Wi-Fi	802.11 b/g/n, 2412 MHz-2472 MHz, 19.9 dBm Security: WPA/WPA2 PSK/WPA2 Enterprise (PEAP-MSCHAPv2 and TTLS-MSCHAPv2 without certificates)
Bluetooth	v4.2 BLE, 2402 MHz-2480 MHz, 2.7 dBm
Antenna	Internal PCB antenna only, 3.7 dBi
Power Supply	Battery type: Replaceable lithium battery Battery capacity: 13 Wh Battery shelf life: 12 months

Click here for complete specifications on the SPM AIR01-01-EX

What's included with the SPM AIR01-01-EX

SPM Airius Ex Wireless Vibration Sensor, 10 to 1000 Hz

brochure SPM Airius Ex Wireless Vibration Sensor datasheet for the SPM Airius Ex Wireless Vibration Sensor, 10 to 1000 Hz manual for the SPM Airius Ex Wireless Vibration Sensor, 10 to 1000 Hz

Ask a question about SPM Airius Ex Wireless Vibration Sensor, 10 to 1000 Hz

Customer Reviews for the SPM AIR01-01-EX

Description ➕➖

SPM AIR01-01-EX Offers

Features

Enables wireless condition monitoring in a potentially explosive atmosphere, measures acceleration in three directions, and temperature
Remote communication with Wi-Fi and Bluetooth
An external push button and three RGB LEDs are local user interfaces
The enclosure consists of a metal body and an ESD-protected plastic lid
The lid is removable for battery replacement
Compatible with both Condmaster.NET, the application providing easy access to measurement data through a user-friendly interface, and the analysis and diagnostic software Condmaster Ruby
The SPM Connect app, downloadable for mobile devices, is used to configure the parameters required for connection to Condmaster Entity Server (CES) or SPM Cloud
Battery-powered

Applications

Condition monitoring

Specifications ➕➖

SPM AIR01-01-EX Specifications

Frequency Range	10 to 1000 Hz
Spectrum Lines	800/1600 lines
Readings	RMS, peak, peak-to-peak, crest, kurt, skew, temperature
Acceleration Measurement	Range, resolution, bandwidth, resolution
Temperature Measurement	Range: -40 to 185°F (-40 to 85°C) Resolution: 0.1°C Accuracy: ±2°C
Ambient Temperatures	Operational: -4 to 185°F (-20 to 85°C) Ex safety: -40 to 185°F (-40 to 85°C) Storage: -40 to 185°F (-40 to 85°C)
Relative Humidity	0 to 100% (non-condensing)
Protection Class	IP69
Approvals/Certificates	CE, ATEX, IECEX, UKEX, FCC, Canadian RSS, China MIIT, Japan MIC, Korean CRM, Taiwan NCC, WiFi Alliance, Bluetooth SIG
Enclosure	Stainless steel body, acid proof; plastic lid, ESD protected
Wi-Fi	802.11 b/g/n, 2412 MHz-2472 MHz, 19.9 dBm Security: WPA/WPA2 PSK/WPA2 Enterprise (PEAP-MSCHAPv2 and TTLS-MSCHAPv2 without certificates)
Bluetooth	v4.2 BLE, 2402 MHz-2480 MHz, 2.7 dBm
Antenna	Internal PCB antenna only, 3.7 dBi
Power Supply	Battery type: Replaceable lithium battery Battery capacity: 13 Wh Battery shelf life: 12 months
