The panel meter can measure voltage or current. It features a digital and bar graph display.
The panel meter can measure voltage or current. It features a digital and bar graph display.

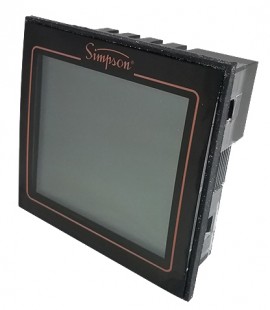

The Simpson APM-PROC-MAK Bear Series Digital Process Meter with outputs can measure voltage and current moving through a system. It features a combined digital and bar graph display to provide results in a convenient format. Settings can be altered from the side buttons to provide better support for any specific situation. This process meter is easy to use in a wide array of applications.
Features
| Battery Type | N/A |
| Product Weight | 6.35 oz (180 g) |
| Output(s) | Max voltage: 34 V; max current: 500 mA; analog output: 4 to 20 mA |
| Power Source | AC or DC |
| Product Length | 2.09" (53 mm) |
| Product Width | 2.84" (72 mm) |
| Product Height | 2.84" (72 mm) |
| Connector Type(s) | Screw terminals |
| Display Type | LCD |
| Impedance | 100 KΩ for voltage, 15 Ω for current |
| DC Voltage Measurement Ranges | 0 to ±10 V |
| DC Current Measurement Ranges | 0 to 50 mA |
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Power Requirements | 12 to 24 V; 1.6 W |
| Approvals | NEMA 4X and 12 with IP65; UL and cUL; CE |
| Battery Type | N/A |
| Product Weight | 6.35 oz (180 g) |
| Output(s) | Max voltage: 34 V; max current: 500 mA; analog output: 4 to 20 mA |
| Power Source | AC or DC |
| Product Length | 2.09" (53 mm) |
| Product Width | 2.84" (72 mm) |
| Product Height | 2.84" (72 mm) |
| Connector Type(s) | Screw terminals |
| Display Type | LCD |
| Impedance | 100 KΩ for voltage, 15 Ω for current |
| DC Voltage Measurement Ranges | 0 to ±10 V |
| DC Current Measurement Ranges | 0 to 50 mA |
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Power Requirements | 12 to 24 V; 1.6 W |
| Approvals | NEMA 4X and 12 with IP65; UL and cUL; CE |
