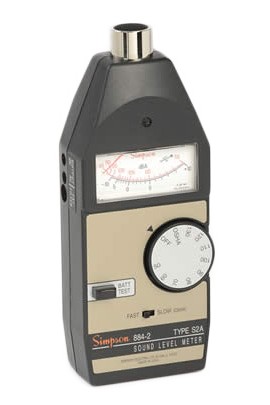

Simpson 884-2 Sound Level Meter with A Weighting

Model: 884-2 | Order No: 40003

Be the first to review this product

Simpson 884-2 Sound Level Meter with A Weighting-

Downloads: datasheet manual

More Simpson Electric Products

Ask an Expert

Simpson 884-2 Sound Level Meter with A Weighting

Model: 884-2 | Order No: 40003

Be the first to review this product

This battery-operated sound level meter has rugged solid-state reliability.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

REED R8060 Sound Level Meter with Bargraph

Model: R8060

Triple range type 2 sound level meter with LCD display, on-screen digital analog bargraph and AC/DC output for connection to chart recorders and dataloggers.

Learn More

REED R8080 Data Logging Sound Level Meter with Bargraph

Model: R8080

Quick-responding triple-range sound level meter with backlit display, analog bargraph and built-in memory to data log up to 64,000 points.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Simpson Electric 884-2 Offers

This sound level meter operates 40 hours on a 9V battery.

Features

Meets IEC 651 and ANSI S1.4-1983 meters
Meets OSHA and walsh-healy noise control specifications
Quickly and accurately measures sound levels in factories, offices, etc
Full coverage 40 to 140dB with special 85 to 115dB OSHA range
Impact-resistance case contoured to minimize sound energy field reflections
AC and DC voltage jacks for recorder, analyzer and tester interface
Built-in tripod mount

Simpson Electric 884-2 Specifications

Physical	3 x 8.2 x 1.9in (77 x 208 x 47mm)
Weight	1.25lb (0.57kg)
Construction	Molded ABS Plastic Housing
Battery Type	(1) 9V NEDA 1604A
Battery Life	40 hrs. (approx)
Operating	14 to 122°F (-10 to 50°C)
Storage	-40 to 140°F (-40 to 60°C)
Temp. Influence	±0.015 dB/°C @ 1KHz
Operating Humidity	±0.5dB 0 to 90%

Click here for complete specifications on the Simpson Electric 884-2

What's included with the Simpson Electric 884-2

Simpson 884-2 Sound Level Meter with A Weighting

datasheet for the Simpson 884-2 Sound Level Meter with A Weighting manual for the Simpson 884-2 Sound Level Meter with A Weighting

Ask a question about Simpson 884-2 Sound Level Meter with A Weighting

Customer Reviews for the Simpson Electric 884-2

Description ➕➖

Simpson Electric 884-2 Offers

This sound level meter operates 40 hours on a 9V battery.

Features

Meets IEC 651 and ANSI S1.4-1983 meters
Meets OSHA and walsh-healy noise control specifications
Quickly and accurately measures sound levels in factories, offices, etc
Full coverage 40 to 140dB with special 85 to 115dB OSHA range
Impact-resistance case contoured to minimize sound energy field reflections
AC and DC voltage jacks for recorder, analyzer and tester interface
Built-in tripod mount

Specifications ➕➖

Simpson Electric 884-2 Specifications

Physical	3 x 8.2 x 1.9in (77 x 208 x 47mm)
Weight	1.25lb (0.57kg)
Construction	Molded ABS Plastic Housing
Battery Type	(1) 9V NEDA 1604A
Battery Life	40 hrs. (approx)
Operating	14 to 122°F (-10 to 50°C)
Storage	-40 to 140°F (-40 to 60°C)
Temp. Influence	±0.015 dB/°C @ 1KHz
Operating Humidity	±0.5dB 0 to 90%
