Seek Scan Thermal Imaging System Kit - Includes two R1500 Tripods

Model: YW-AAA-KIT

Seek Scan Thermal Imaging System Kit - Includes two R1500 Tripods

Model: YW-AAA-KIT

A quick and easy thermal imaging system specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. It automates body temperature screening using skin temperature as a proxy and provides an additional layer of preventive screening. This value added kit includes two REED R1500 tripods.

A quick and easy thermal imaging system specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. It automates body temperature screening using skin temperature as a proxy and provides an additional layer of preventive screening. This value added kit includes two REED R1500 tripods.

Sale Price $2095.00 USD
Regular Price $2145.00 USD
Availability 30 in Stock
Quantity

Seek YW-AAA-KIT Offers

Simple screening for safer communities

Helps businesses, institutions and venues easily screen for skin temperature.
A simple thermal imaging system designed to automate body temperature screening using skin temperature as a proxy. It can be installed in lobbies, hallways, and other key access points to help businesses, institutions and venues create a safer environment for their workforce, customers, members, and patrons. Easy-to-install and easy-to-use, the system can be up and running in minutes with no special equipment or training.

Features

  • Accurate and automated
  • Specifically designed and calibrated for skin temperature measurement
  • Enables social distancing
  • Perfect for lobbies, hallways and other key access points
  • Set a customizable alarm temperature and start screening in minutes

Applications

  • Small, medium and large businesses
  • Factories and warehouses
  • Hotels
  • Restaurants
  • Venues, theaters and arenas
  • Nursing homes
  • Schools and daycares
  • Gyms and other sports facilities

Application Note: Elevated Body Temperature Detector

In this application note, you'll find important info on detecting elevated body temperatures. You'll learn how to use Seek products as front line preventative screening tools.

Learn how to detect body temperature with Seek thermal imagers

​Key Features

Designed and calibrated for accurate skin temperature measurement
Developed for precise temperature measurement and also includes a fixed heat source that maximizes accuracy.

Enables social distancing
Non-contact, non-invasive screening eliminates contact between screening personnel and participants.

Fast, automated screening
In seconds, the system detects a face, finds the most reliable spot to measure and displays a pass/fail alert.

Easy to install and easy to use
Start scanning in minutes using two tripods and a Windows PC. No special equipment or training required.

Proven technology
Thermal imaging has been used globally for years as a fast, non-invasive way to measure temperature.


How it works

The system is specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. In seconds, the system automatically detects a face, identifies the most reliable facial features for measurement, and displays an alert if someone is warmer than the customizable alarm temperature.

Unlike typical industrial thermal cameras, it was developed for precise skin temperature measurement and maximizes accuracy by referencing a fixed heat source with a known temperature value. Including a fixed heat source in the system lets it produce much higher accuracy than a standard thermal imaging camera. The thermal system process provides an additional layer of preventive screening and can deliver more peace of mind to businesses, institutions and participants.


Analyzing skin temperature

Below alarm temperature

Above alarm temperature


​Skin temperature vs body temperature

Measures skin temperature as a proxy for body temperature.

Here are a few things to know about skin temperature measurement:

  • Skin temperature is typically a few degrees less than body temperature. As such, the system will report temperature readings lower than internal body temperature (this means the system is working properly)
  • A person's skin temperature may vary based on a variety of circumstances such as ambient temperature, sweat, facial hair, and glasses. For this reason, the system graphs all recent temperature measurements to help the user clearly see anomalies and set a desired temperature alarm threshold based on their own environment
  • Programmed to measure the most reliable parts of the face to produce the best results with high accuracy

REED R1500 Lightweight Tripod

Features

  • Adjustable height up to 56"
  • Durable and lightweight aluminum alloy design
  • 3-section leg lock system with non-slip rubber feet
  • Quick release plate and bubble level
  • Added stability with weight hook
  • Tilt motion easily changes instrument orientation

Seek YW-AAA-KIT Specifications

Camera
Thermal Sensor Resolution 206 x 156
Visible Light Camera Resolution 640 x 480
Horizontal/Vertical Field of View 35°/26°
Lens Focal Length/F-Number 4 mm / f/1.20
Frame Rate <9 Hz
Power USB 5 V (plugs into computer USB-A port)
Dimensions 1.18 x 3.15 x 3.54" (3 x 8 x 9 cm)
Weight 0.31 lbs (140 g)
Tripod Mount ¼"-20 standard camera tripod mount
Fixed Heat Source
Temperature-Controlled Device Emits a constant reference temperature
Power 110 to 220 V, 50/60 Hz (plugs into wall outlet)
Dimensions 1.18 x 3.54 x 3.74" (3 x 9 x 9.5 cm)
Weight 0.18 lbs (80 g)
Tripod Mount ¼"-20 standard camera tripod mount
Measurement Specifications
Temperature Accuracy ±0.5°F (0.3°C) between 96 to 104°F (36 to 40°C) at 5' (1.5 m)
Verified in a laboratory setting using a fixed heat source
Sensor Sensitivity 40 mK (typical), <50 mK (maximum) at 25°C (post signal processing)
System Specifications
System Requirements Supported operating systems: Windows 7 and 10
Operating Temperature Optimal temperature accuracy in conditions below 105°F (40°C) ambient
Scan Measurement Time 1 second
Data Capture Event trigger with JPEG and thermal spot temperature
Click here for complete specifications on the Seek YW-AAA-KIT

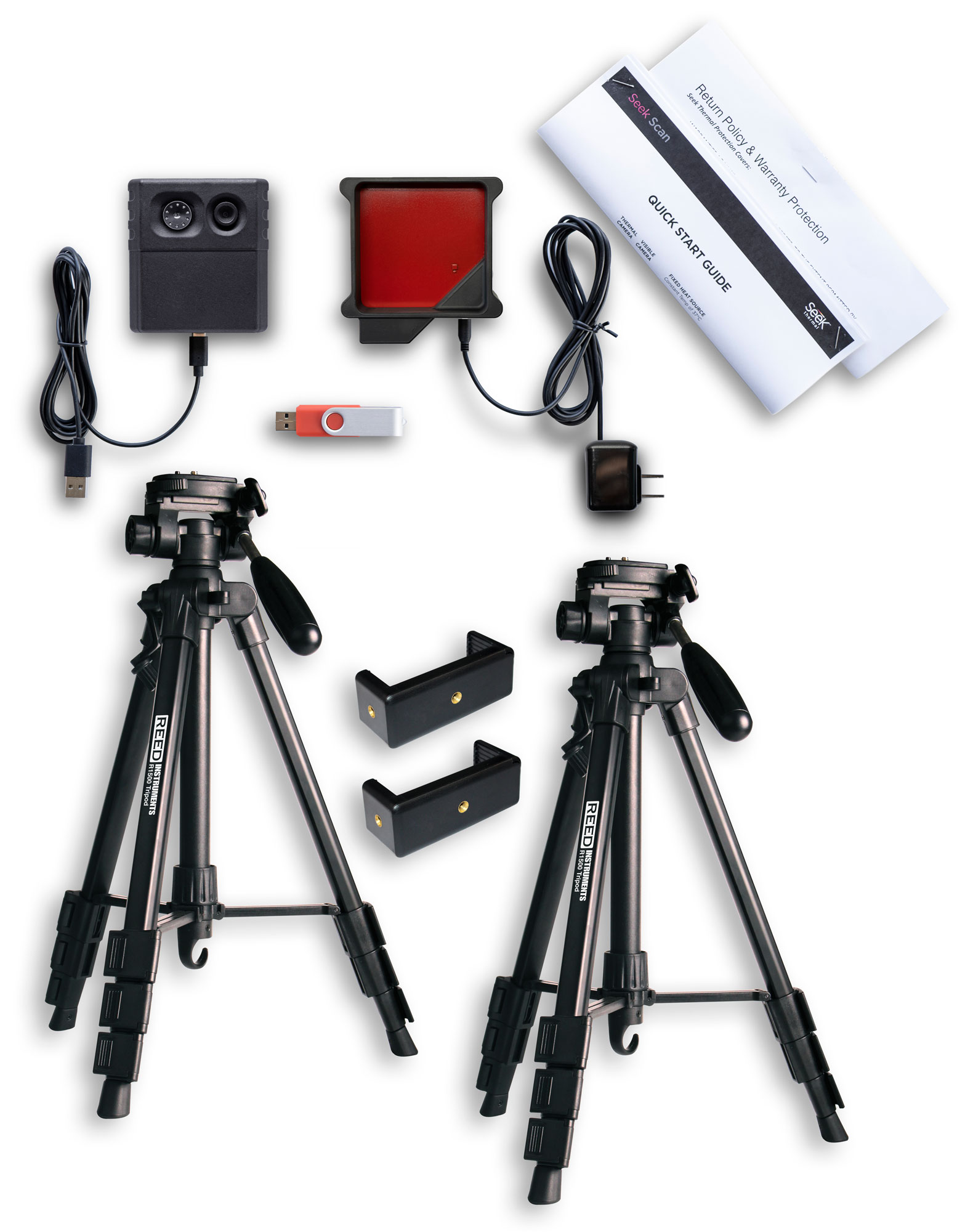

What's included with the Seek YW-AAA-KIT

  • Camera
  • Camera USB-A Cable
  • Fixed Heat Source
  • Fixed Heat Source Power Cable
  • 2 x Tripods
  • USB Stick with Seek Scan Software
  • Quick Start Guide

The Seek Scan Thermal Imaging System Kit Includes


Seek Scan Thermal Imaging System, 206 x 156

Seek Scan Thermal Imaging System, 206 x 156

A quick and easy thermal imaging system that is specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. It automates body temperature screening using skin temperature as a proxy, and provides an additional layer of preventive screening, and delivers more peace of mind to businesses, institutions, and participants.


REED R1500 Lightweight Tripod

REED R1500 Lightweight Tripod

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.

Customer Reviews for the Seek YW-AAA-KIT

Ask a question about Seek Scan Thermal Imaging System Kit - Includes two R1500 Tripods

Seek YW-AAA-KIT Offers

Simple screening for safer communities

Helps businesses, institutions and venues easily screen for skin temperature.
A simple thermal imaging system designed to automate body temperature screening using skin temperature as a proxy. It can be installed in lobbies, hallways, and other key access points to help businesses, institutions and venues create a safer environment for their workforce, customers, members, and patrons. Easy-to-install and easy-to-use, the system can be up and running in minutes with no special equipment or training.

Features

  • Accurate and automated
  • Specifically designed and calibrated for skin temperature measurement
  • Enables social distancing
  • Perfect for lobbies, hallways and other key access points
  • Set a customizable alarm temperature and start screening in minutes

Applications

  • Small, medium and large businesses
  • Factories and warehouses
  • Hotels
  • Restaurants
  • Venues, theaters and arenas
  • Nursing homes
  • Schools and daycares
  • Gyms and other sports facilities

Application Note: Elevated Body Temperature Detector

In this application note, you'll find important info on detecting elevated body temperatures. You'll learn how to use Seek products as front line preventative screening tools.

Learn how to detect body temperature with Seek thermal imagers

​Key Features

Designed and calibrated for accurate skin temperature measurement
Developed for precise temperature measurement and also includes a fixed heat source that maximizes accuracy.

Enables social distancing
Non-contact, non-invasive screening eliminates contact between screening personnel and participants.

Fast, automated screening
In seconds, the system detects a face, finds the most reliable spot to measure and displays a pass/fail alert.

Easy to install and easy to use
Start scanning in minutes using two tripods and a Windows PC. No special equipment or training required.

Proven technology
Thermal imaging has been used globally for years as a fast, non-invasive way to measure temperature.


How it works

The system is specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. In seconds, the system automatically detects a face, identifies the most reliable facial features for measurement, and displays an alert if someone is warmer than the customizable alarm temperature.

Unlike typical industrial thermal cameras, it was developed for precise skin temperature measurement and maximizes accuracy by referencing a fixed heat source with a known temperature value. Including a fixed heat source in the system lets it produce much higher accuracy than a standard thermal imaging camera. The thermal system process provides an additional layer of preventive screening and can deliver more peace of mind to businesses, institutions and participants.


Analyzing skin temperature

Below alarm temperature

Above alarm temperature


​Skin temperature vs body temperature

Measures skin temperature as a proxy for body temperature.

Here are a few things to know about skin temperature measurement:

  • Skin temperature is typically a few degrees less than body temperature. As such, the system will report temperature readings lower than internal body temperature (this means the system is working properly)
  • A person's skin temperature may vary based on a variety of circumstances such as ambient temperature, sweat, facial hair, and glasses. For this reason, the system graphs all recent temperature measurements to help the user clearly see anomalies and set a desired temperature alarm threshold based on their own environment
  • Programmed to measure the most reliable parts of the face to produce the best results with high accuracy

REED R1500 Lightweight Tripod

Features

  • Adjustable height up to 56"
  • Durable and lightweight aluminum alloy design
  • 3-section leg lock system with non-slip rubber feet
  • Quick release plate and bubble level
  • Added stability with weight hook
  • Tilt motion easily changes instrument orientation

Seek YW-AAA-KIT Specifications

Camera
Thermal Sensor Resolution 206 x 156
Visible Light Camera Resolution 640 x 480
Horizontal/Vertical Field of View 35°/26°
Lens Focal Length/F-Number 4 mm / f/1.20
Frame Rate <9 Hz
Power USB 5 V (plugs into computer USB-A port)
Dimensions 1.18 x 3.15 x 3.54" (3 x 8 x 9 cm)
Weight 0.31 lbs (140 g)
Tripod Mount ¼"-20 standard camera tripod mount
Fixed Heat Source
Temperature-Controlled Device Emits a constant reference temperature
Power 110 to 220 V, 50/60 Hz (plugs into wall outlet)
Dimensions 1.18 x 3.54 x 3.74" (3 x 9 x 9.5 cm)
Weight 0.18 lbs (80 g)
Tripod Mount ¼"-20 standard camera tripod mount
Measurement Specifications
Temperature Accuracy ±0.5°F (0.3°C) between 96 to 104°F (36 to 40°C) at 5' (1.5 m)
Verified in a laboratory setting using a fixed heat source
Sensor Sensitivity 40 mK (typical), <50 mK (maximum) at 25°C (post signal processing)
System Specifications
System Requirements Supported operating systems: Windows 7 and 10
Operating Temperature Optimal temperature accuracy in conditions below 105°F (40°C) ambient
Scan Measurement Time 1 second
Data Capture Event trigger with JPEG and thermal spot temperature
Click here for complete specifications on the Seek YW-AAA-KIT

What's included with the Seek YW-AAA-KIT

  • Camera
  • Camera USB-A Cable
  • Fixed Heat Source
  • Fixed Heat Source Power Cable
  • 2 x Tripods
  • USB Stick with Seek Scan Software
  • Quick Start Guide

The Seek Scan Thermal Imaging System Kit Includes


Seek Scan Thermal Imaging System, 206 x 156

Seek Scan Thermal Imaging System, 206 x 156

A quick and easy thermal imaging system that is specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. It automates body temperature screening using skin temperature as a proxy, and provides an additional layer of preventive screening, and delivers more peace of mind to businesses, institutions, and participants.


REED R1500 Lightweight Tripod

REED R1500 Lightweight Tripod

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.

Ask a question about Seek Scan Thermal Imaging System Kit - Includes two R1500 Tripods

Customer Reviews for the Seek YW-AAA-KIT
